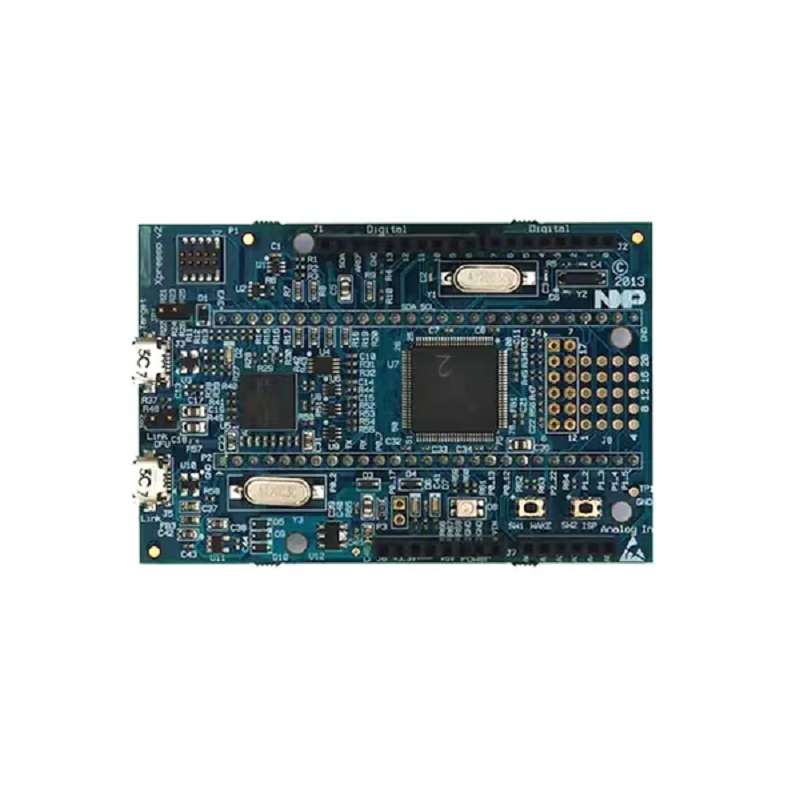

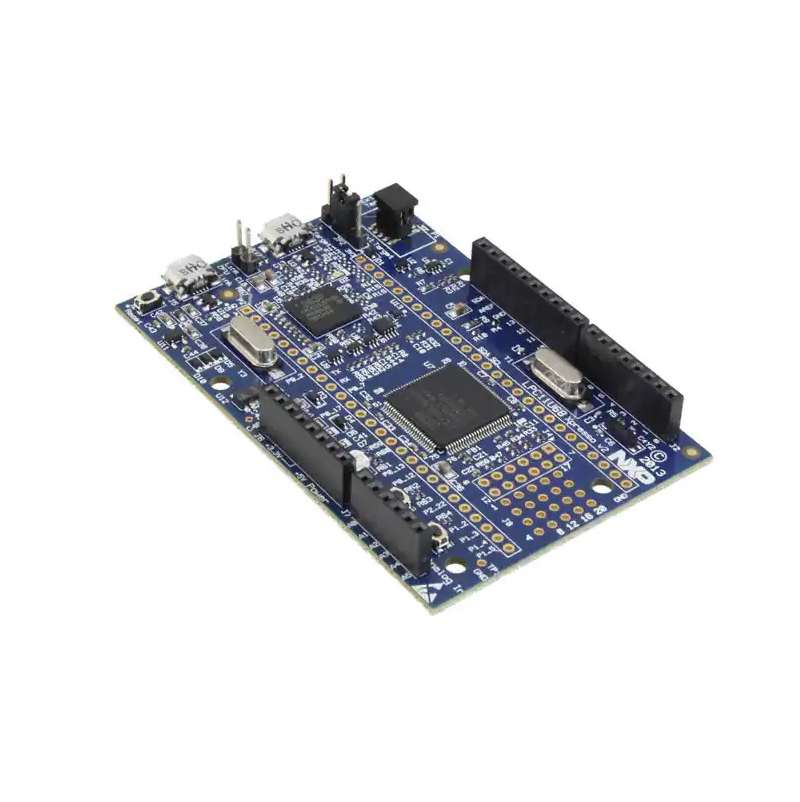

NXP Development Board, LPC11U68 MCU, JTAG Debugger, LPCXpresso Arduino UNO Expansion Connectors

The LPC11U6x are an ARM Cortex-M0+ based, low-cost 32-bit MCU family operating at CPU frequencies of up to 50 MHz. The LPC11U6x support up to 256 KB of flash memory, a 4 KB EEPROM, and 36 KB of SRAM. The ARM Cortex-M0+ is an easy-to-use, energy-efficient core using a two-stage pipeline and fast single-cycle I/O access. The peripheral complement of the LPC11U6x includes a DMA controller, a CRC engine, one full-speed USB device controller with XTAL-less low-speed mode, two I 2 C-bus interfaces, up to five USARTs, two SSP interfaces, PWM/timer subsystem with sixconfigurable multi-purpose timers, a Real-Time Clock, one 12-bit ADC, temperature sensor, function-configurable I/O ports, and up to 80 general-purpose I/O pins.

Applications:

1. Three-phase e-meter
2. Car radio
3. GPS tracker
4. Medical monitor
5. Gaming accessories
6. PC peripherals

Note: For more info refer to datasheet in attachment section

Features:

1. Small size, easy to use.
2. Plug and play device
3. Low voltage, low power consumption.
4. Compact design
5. Best for DIY projects

Packages Includes:

1 x NXP Development Board, LPC11U68 MCU, JTAG Debugger, LPCXpresso Arduino UNO Expansion Connectors
