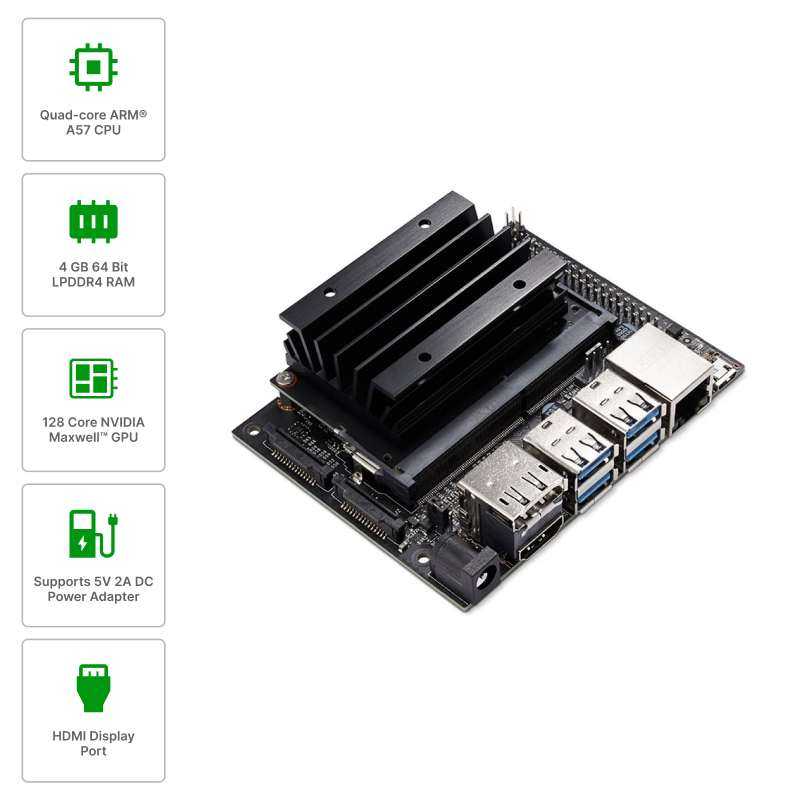

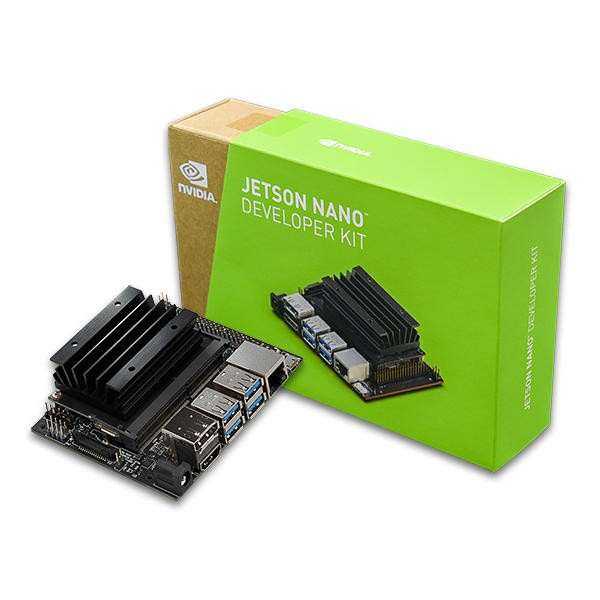

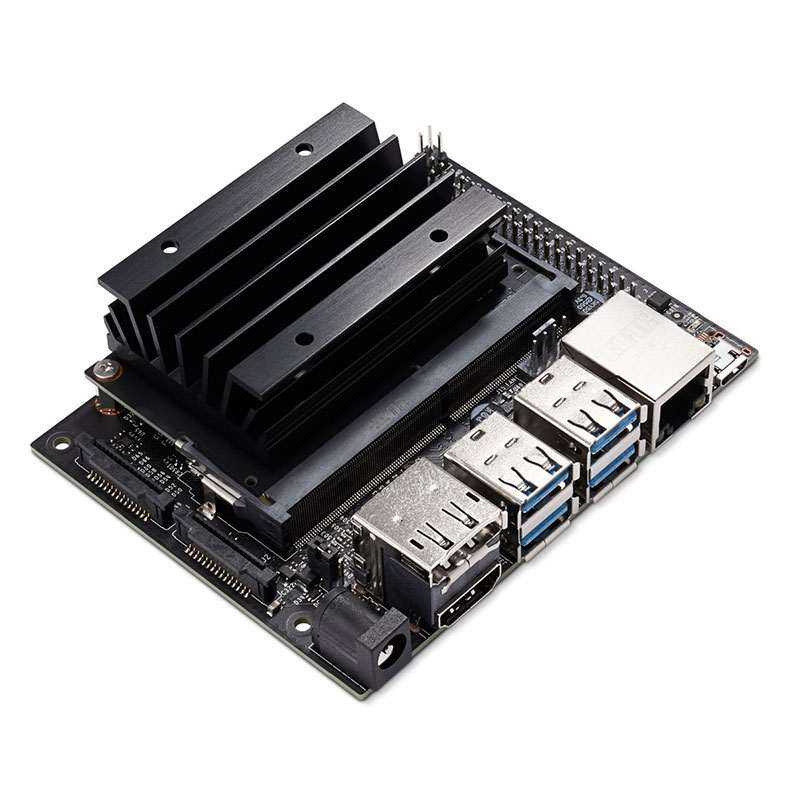

NVIDIA Jetson Nano Developer Kit-B01

NVIDIA Jetson Nano Developer Kit delivers the performance to run modern AI workloads in a small form factor, power-efficient (consuming as little as 5 Watts), and low cost. Developers, learners, and makers can run AI frameworks and models for applications like image classification, object detection, segmentation, and speech processing.

The developer kit can be powered by micro-USB and comes with extensive I/Os, ranging from GPIO to CSI. This makes it simple for developers to connect a diverse set of new sensors to enable a variety of AI applications. We at SparkFun see this as more than enough potential to be yelling “Stop this crazy thing” to your friends & family!

Jetson Nano is also supported by NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA, cuDNN, and TensorRT software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. The software is even available using an easy-to-flash SD card image, making it fast and easy to get started.

The same JetPack SDK is used across the entire NVIDIA Jetson family of products and is fully compatible with NVIDIA’s AI platform for training and deploying AI software. This proven software stack reduces complexity and overall effort for developers.

To get started Click here!

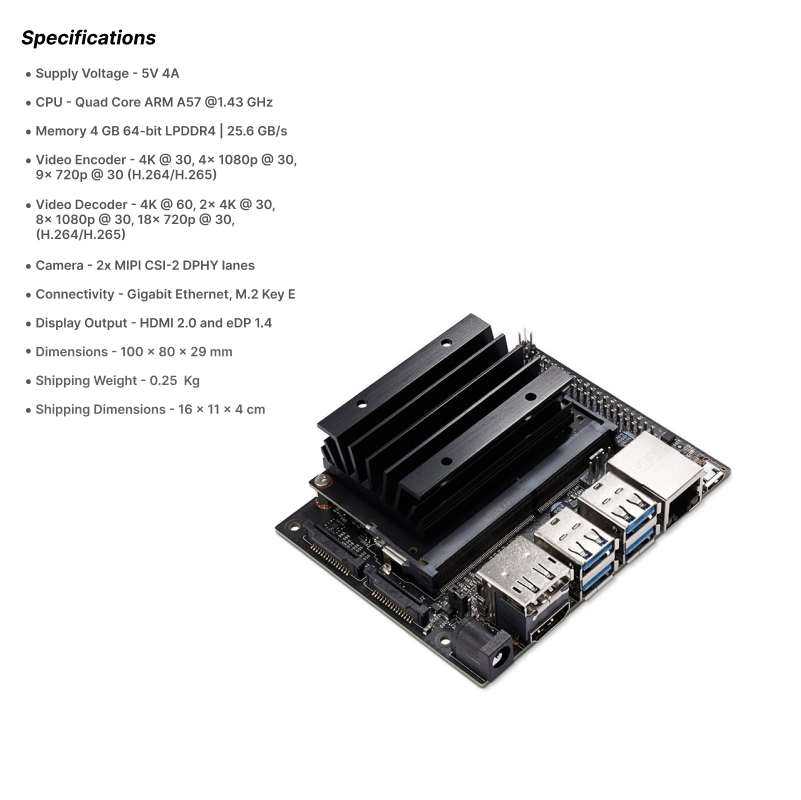

Features:

1. GPU 128-core Maxwell GPU
2. CPU Quad-core ARM A57 @1.43 GHz
3. Memory 4 GB 64-bit LPDDR4 | 25.6 GB/s
4. Storage MicroSD (not included)
5. Video Encoder: 4Kp @ 30| 4x 1080p @ 30| 9x 720p @ 30 (H.264/H.265)
6. Video Decoder: 4Kp @ 60| 2x 4Kp @ 30| 8x 1080p @ 30| 18x 720p @ 30| (H.264/H.265)
7. Supports Micro-USB 5V 2A (Not included).
8. Supports DC power adapter 5V 4A (Not included), also supports 5V/4A via power barrel or 5V/2A via micro USB port selectable by jumper; optional PoE support.
9. USB 3.0 Type A
10. USB 2.0 Micro-B
11. HDMI/DisplayPort
12. M.2 Key E
13. Gigabit Ethernet
14. GPIOs, I2C, I2S, SPI, UART
15. MIPI-CSI camera connector
16. Fan connector
17. PoE connector
18. Dimensions: 100mm x 80mm x 29mm

Package Includes:

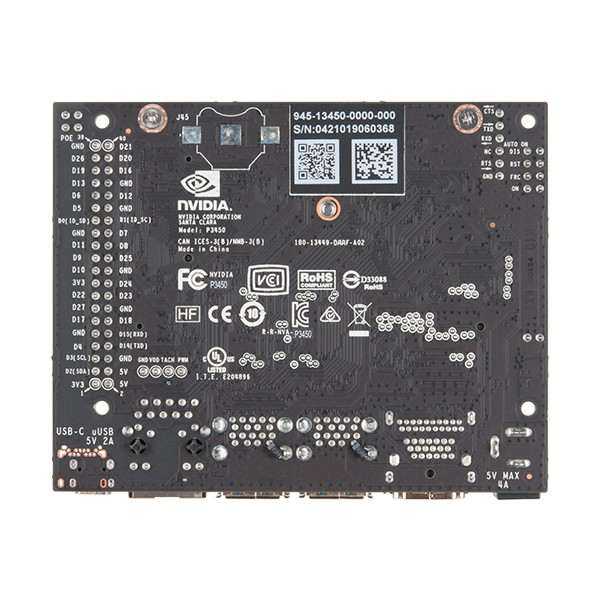

1 x NVIDIA Jetson Nano module – B01 and carrier board.

1 x Dark ESD bag.

1x Quick start guide/support guide.
