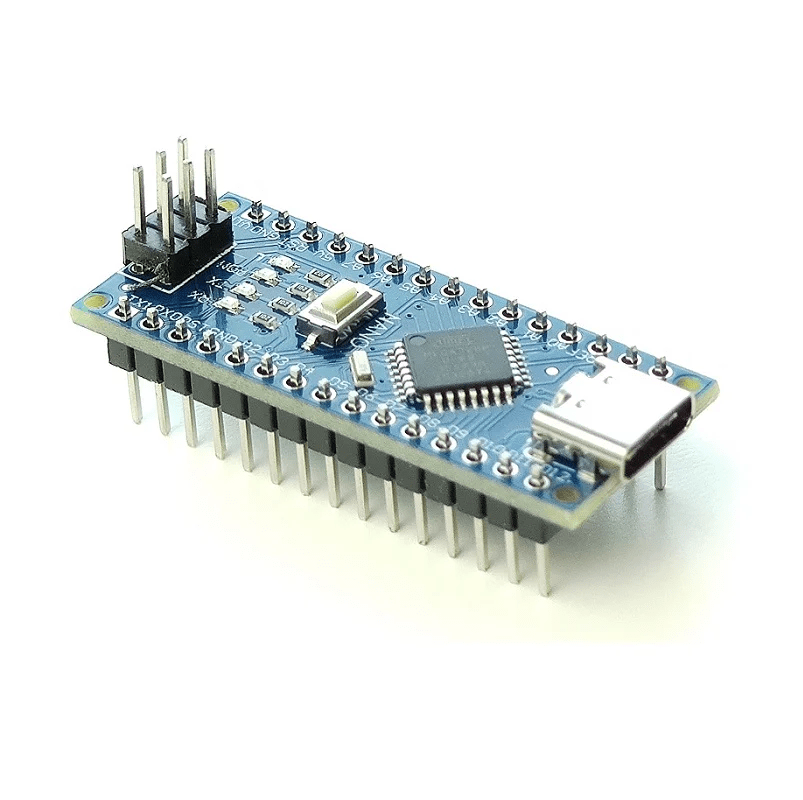

Nano V3.0 ATmega328P 5V 16MHz CH340 Type-C with WhiteType-C Cable 30cm

This is a Nano V3.0 ATmega328P 5V 16MHz CH340 Type-C with WhiteType-C Cable 30cm.

This Arduino-compatible Nano V3.0 micro-controller is a small, complete, micro-controller board based on the ATmega328 MCU. It has more or less the same functionality as the Arduino Duemilanove, but in a smaller package. It lacks only a DC power jack, and uses the more compact Mini USB (Mini-B) connector instead of a standard USB connector.

Nano V3.0 ATmega328P 5V 16MHz CH340 Type-C with WhiteType-C Cable 30cm is compatible with Arduino programs and the Arduino IDE. This version of the Nano uses the CH340G USB interface controller.

It can be powered via the Mini-B USB connection, a 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.

Features:

1. CH340G USB bus converter chip replaces FT232RL
2. Operating Voltage（logic level): 5V
3. 8 analog inputs ports: A0 – A7
4. 14 Digital input / output ports: TX, RX, D2 – D13
5. 6 PWM ports: D3, D5, D6, D9, D10, D11
6. 1 pair of TTL level serial transceiver ports: RX / TX
7. Uses Atmel Atmega328P-AU MCU with bootloader installed
8. Support USB download and Power over Mini-B Mini USB connector
9. Recommended input voltage: 7V – 12V DC on pin 30 or 5V on pin 27
10. Maximum input voltage limits: 6V – 20V
11. Supports ISP download
12. Supplied with connector pins (headers), not soldered to the board for user flexibility

Package Includes:

1. 1 X Nano V3.0 16MHz CH340
2. 1 X Type-C Cable 30cm
