| Input |
Channels: 4 |
|---|---|
| Output |
Channels: 4 |
| Stoarage |
8MB USB flash disk memory |
| Screen Size |
2.8” |
| Screen Resolution |
320×240 |

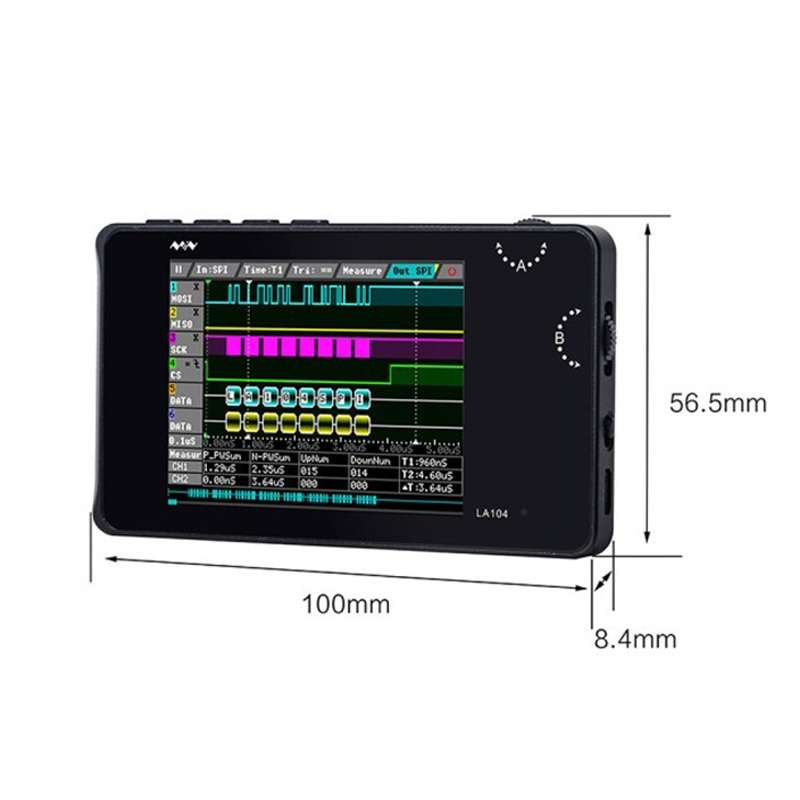

| Dimension (LxWxH)mm |
100 x 56 x 8.6 |
| Weight |
83g |
| Certifications |
CE, FCC |
| Channel |
4 |
| Max Sampling Rate |
100M Sa/S |
| Min Captured Pulse width |
10ns |
| Input Voltage Range |
0-5V |
| Equivalent Input Impedance |
1MΩ |
| Threshold Voltage |
1.2-3V |
| Programmable Output Channel |
4 |
| Programmable Output Type |
PWM,SPI,I2C,UART |
| Programmable Output Amplitude |
3v |
| 3V Power Output Channel |
1 |
| Storage |
Built-in 8M Flash Storage |
| Battery |
Built-in 500mAh Lithium Battery |
| Shipping Weight | 0.1 kg |
| Shipping Dimensions | 10 × 7 × 3 cm |

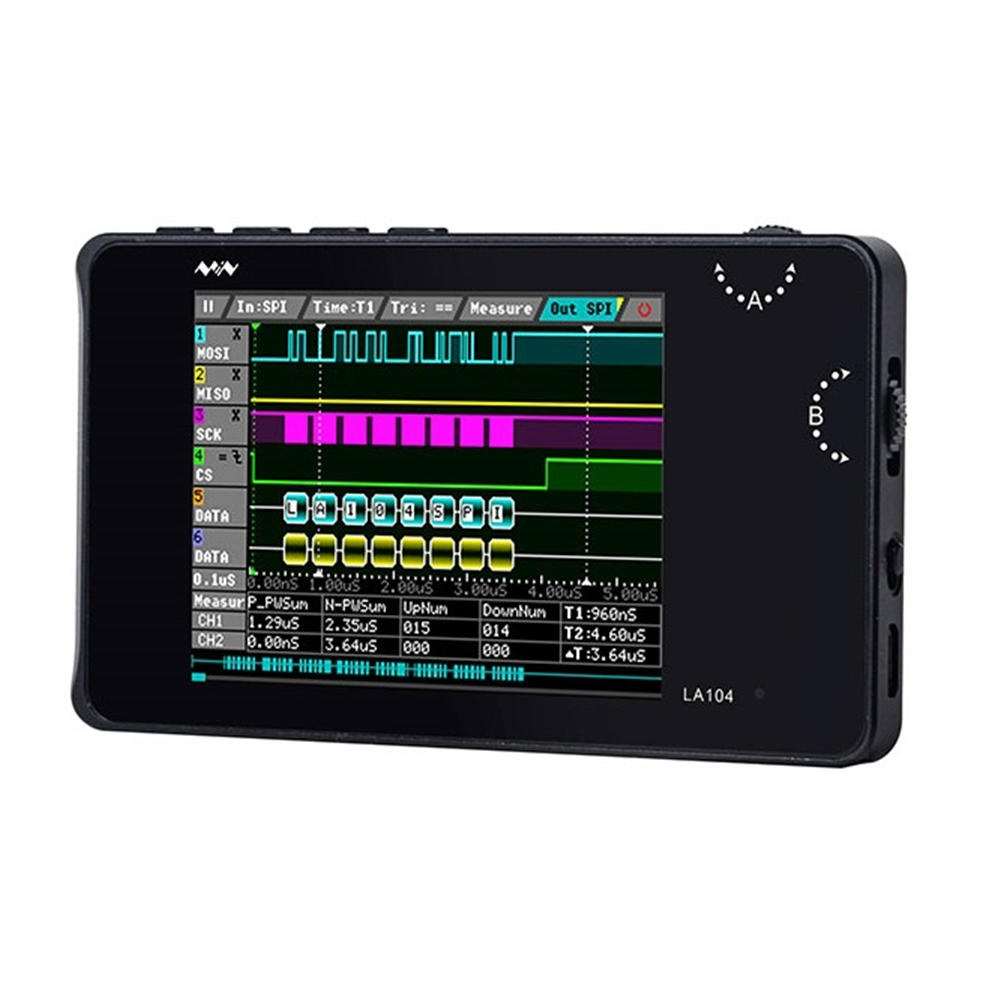

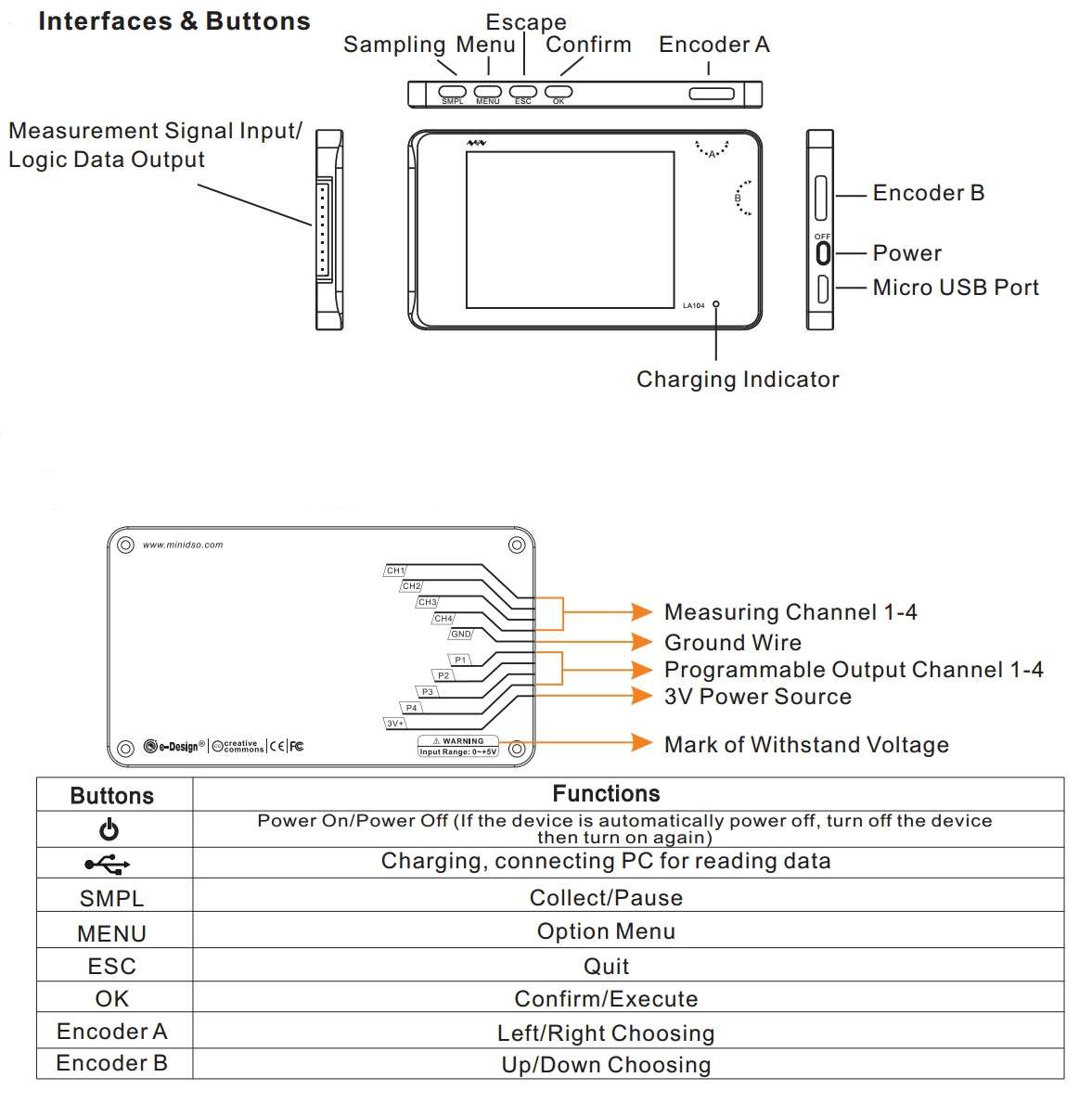

Mini DSO LA104 Digital Logic Analyzer
- Compact Design: Equipped with a 2.8″ 320×240 TFT display and a side thumb wheel for easy operation and navigation.
- Widely Used: Analyze PWN, I2C, SPI and many other accepted standard protocols. This unit is designed for PWN, SPI, I2C and other communication debugging.
- Portable: Its small size makes it easy to fit in any pocket, so you can use it anytime, anywhere!
- Easy to Save: The built-in 8 MB flash storage makes saving images and transferring data easier than ever!

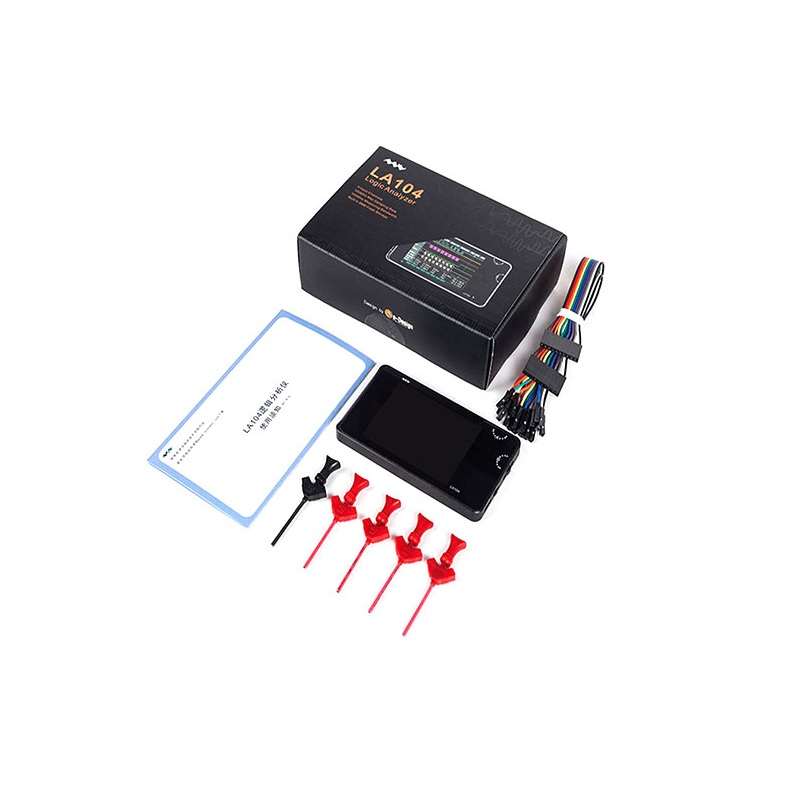

- 5 Pieces Test hook,20 Pieces Dupont Lines,1 Piece Instructions for use,1 Piece LA104 Logic Analyzer, Built-in Lithium battery.
₨ 100.10
Out of stock
Out of stock
10
People watching this product now!

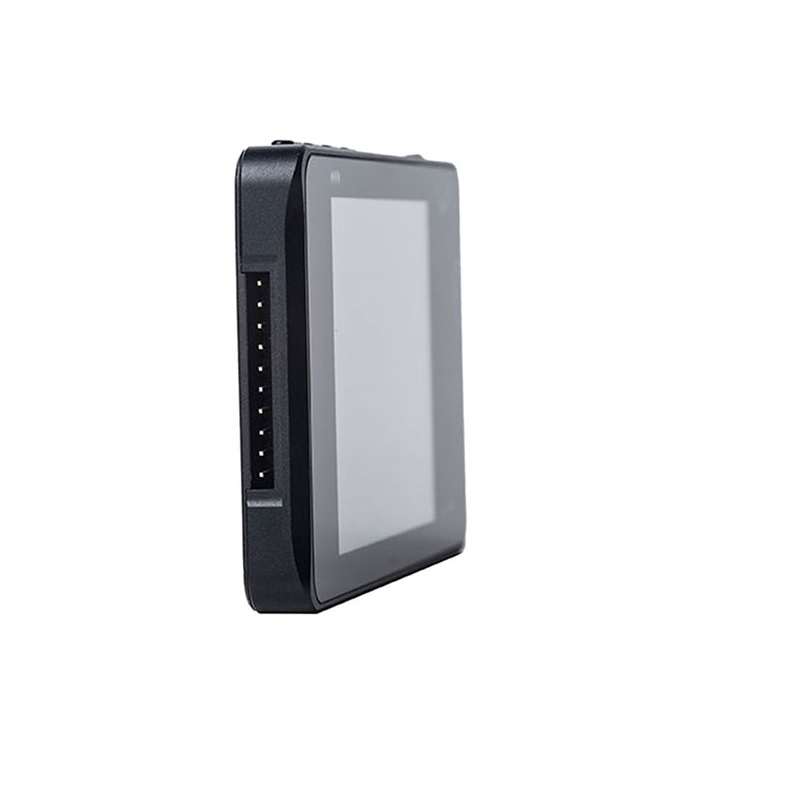

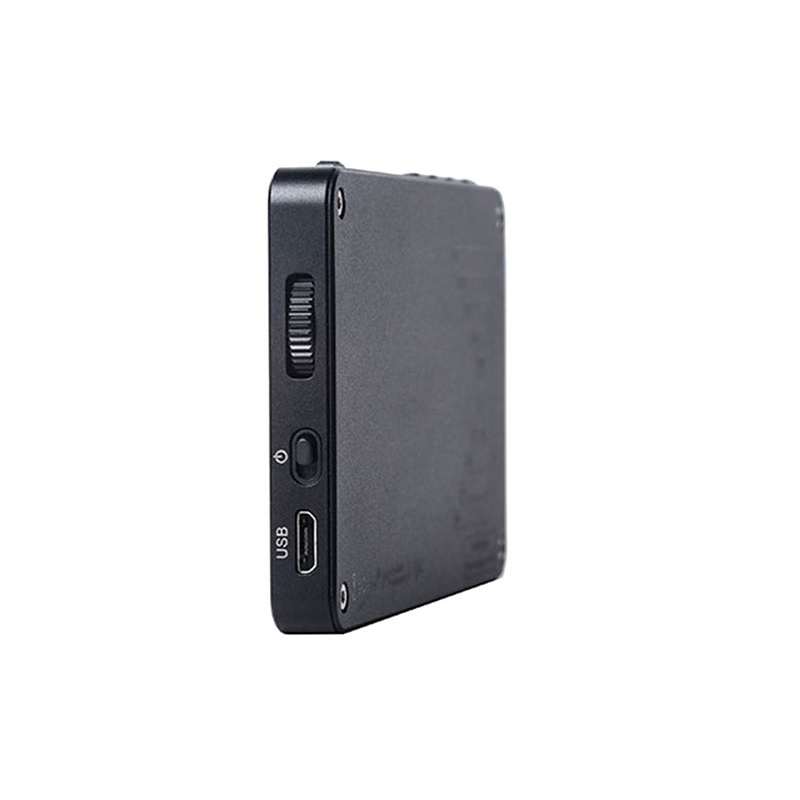

LA104 is a compact, portable logic analyzer with a display screen. It is widely applied to a variety of industries and fields, such as automotive electronics, communication, power supply and computer.
A logic analyzer is used to analyze the logic relationship of digital systems, as it can collect and store multichannel digital signals and directly display their sequential relationship on the screen. The logic analyzer is equipped with the function of protocol analysis and can parse the logic signal of the protocol’s physical layer into data of the high layer protocol and display them on the screen.
Features:
- Colour display.
- 4 Input Channels.
- 100MHz Max Sampling Rate.
- 100MHz Measuring Bandwidth.
- Built-In 8MB Flash Storage.

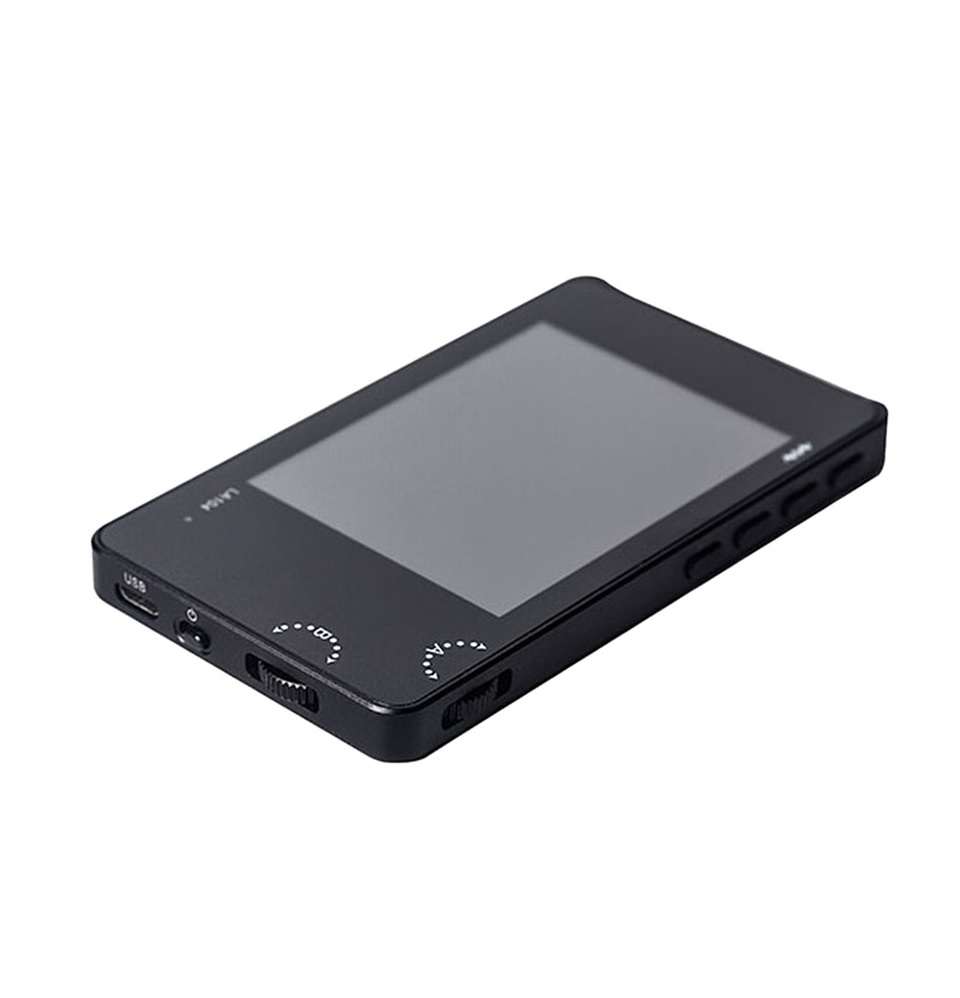

Compact Design:
Equipped with a rich 2.8″ 320×240 TFT display and side thumbwheels allow for easy operation and navigation.
Wide Application:
Analyze UART, I2C, SPI, and many other standard protocols accepted. This unit is specially designed for UART, SPI, I2C, and other communication debugging.
Portable:
Its small form factor conveniently fits inside any pocket so it’s always ready on the go!
Easy Saving:
The built-in 8 MB flash storage makes saving images and transferring data easier than ever!
Simple to Use:
Product instructions are provided, but if you have any more concerns, SainSmart provides more details in their wiki page and customer assistance with any questions that may arise!
Package Includes:
1 x Mini DSO LA104 Digital Logic Analyzer + Accessories
