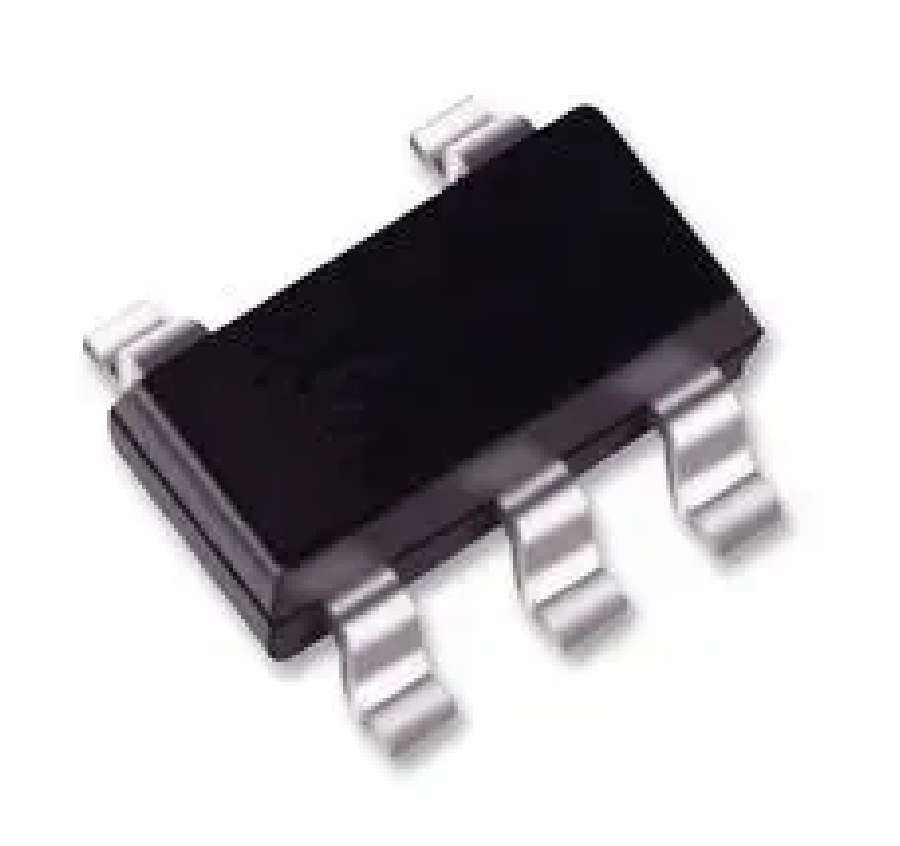

MCP6001T-I/OT-MICROCHIP-Operational Amplifier, RRIO, 1 Amplifier, 1 MHz, 0.6 V/µs, 1.8V to 6V, SOT-23, 5 Pins

  1. No of pins: 5
  2. No.of Amplifier: 1
  3. Gain: 1MHz
  4. Slew rate: 0.6 V/µs
  5. Supply voltage: 1.8V to 6V

 80.00

Out of stock

Out of stock

17 People watching this product now!

datasheet

DOWNLOAD

No. of Pins

5

No. of Amplifiers

1

Supply voltage(V)

1.8 to 6

Shipping Weight 0.003 kg
Shipping Dimensions 5 × 4 × 1 cm

MCP6001 is a single operational amplifier (op-amp) specifically designed for general purpose applications. Typical applications include automotive, portable equipment, photodiode amplifier, analogue filters, notebooks and PDAs and battery-powered systems.


Features:

  1. Gain bandwidth product: 1MHz (typical)
  2. Rail-to-rail input/output
  3. Supply voltage: 1.8V to 6.0V and 100µA supply current
  4. Quiescent current per amplifier is 100µA typ at VDD = 5.5V, VCM = 5V
  5. Phase margin: 90° (typical)
  6. 4.5mV max input offset voltage
  7. 86dB typ PSRR at VCM = VSS and 76dB CMRR at VCM = -0.3V to 5.3V, VDD = 5V
  8. ±1pA typ input offset current
  9. 5-lead plastic small outline transistor (SOT-23) package
  10. Temperature ranges from -40°C to +85°C

Package Includes:

1 x MCP6001T-I/OT-MICROCHIP-Operational Amplifier, RRIO, 1 Amplifier, 1 MHz, 0.6 V/µs, 1.8V to 6V, SOT-23, 5 Pins
