Datasheet
₨ 100.10
Out of stock
Out of stock
Operating voltage (v) |
3.0 – 5.5V |
---|---|
Operating Temperature |
-40°C to +65°C |
Operating Frequency |
42kHz |
Distance Sensor Range |
30cm to 5meters |
Proximity Sensor Range |
1mm to 5meters |
Resolution |
1mm |
Length (mm): |
22.5 |
Width (mm): |
20 |
Height (mm): |
15 |
Weight (g): |
5 |
Shipping Weight | 0.01 kg |
Shipping Dimensions | 12 × 10 × 3 cm |

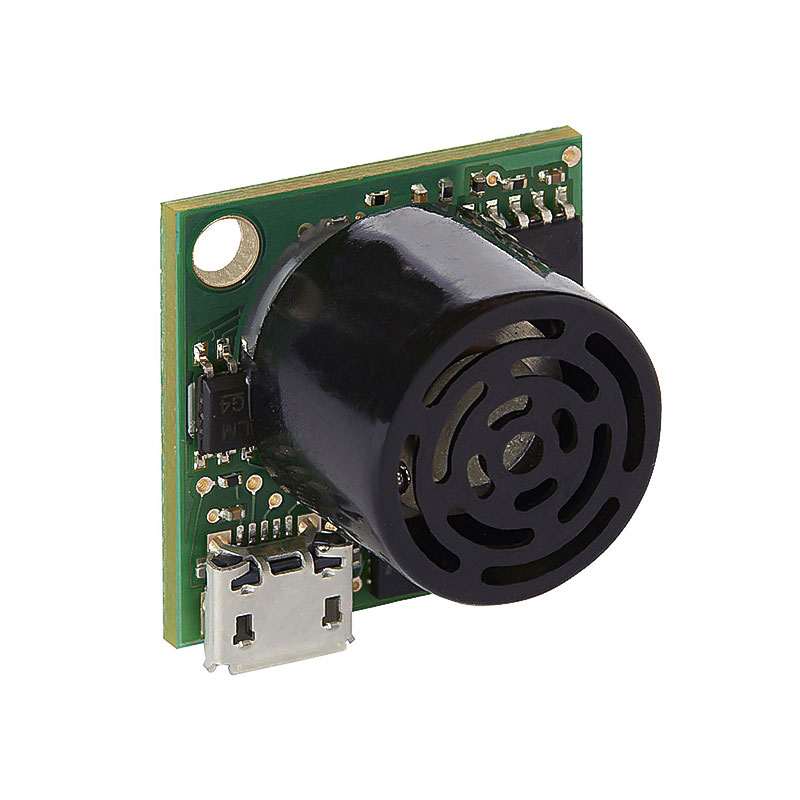

The HRUSB-MaxSonar-EZ sensor line is a cost-effective solution for applications where precision range-finding, space-saving, and low cost are needed. This sensor component module allows users of other more costly precision rangefinders to lower the cost of their systems without sacrificing performance.
Additionally, this sensor line allows cost-sensitive designers to choose this precision sensor as a performance upgrade over other lower-performance sensors. The HRUSB-MaxSonar-EZ sensor line provides high accuracy and high-resolution ultrasonic proximity detection and ranges in air, in a package less than one cubic inch. This sensor line features 1-mm resolution, target-size compensation for improved accuracy, superior rejection of outside noise sources, internal speed-of-sound temperature compensation. This ultrasonic sensor detects objects from 1 mm to 5 meters, senses range to objects from 30 cm to 5 meters, with large objects closer than 30 cm are typically reported as 30 cm.

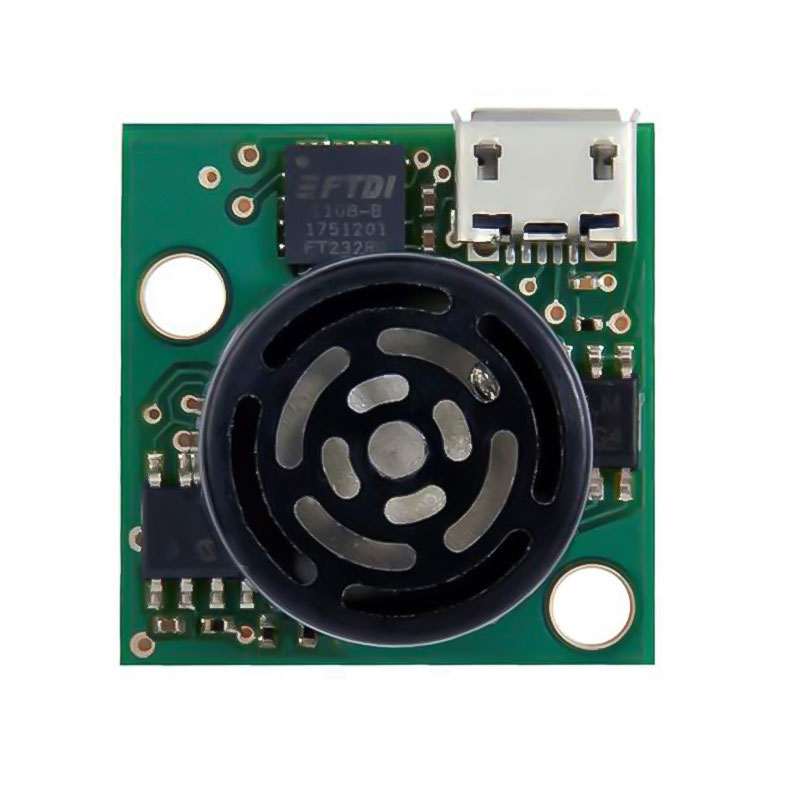

This sensor comes with mounting holes provided on the circuit board for easy installation in nearly all applications. In addition, the MB1413 offers virtually noise-free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.
Connection Diagram of MaxBotix MB1413 HRUSB-MaxSonar-EZ1 With Arduino:
ROBU.IN is an official distributor of MaxBotix Ultrasonic Sensors in India. Check out our MaxBotix Ultrasonic Sensors now!
1 x MaxBotix MB1413 HRUSB-MaxSonar-EZ1
