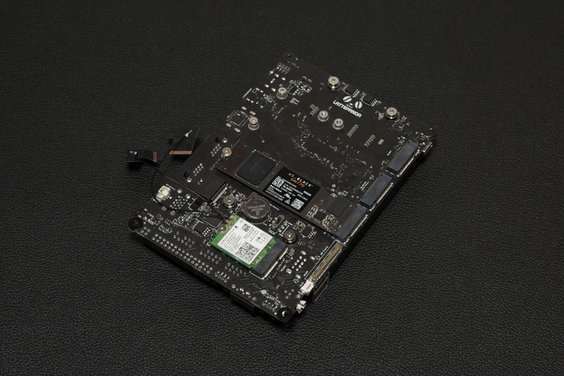

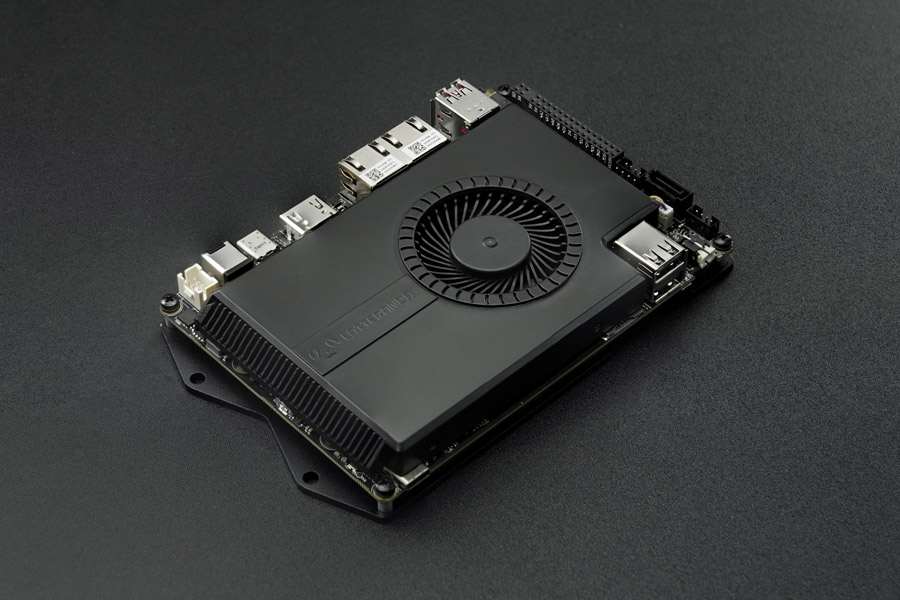

LattePanda Sigma – The Small Hackable x86 Windows/Linux Single Board Computer Server (16GB RAM) NO SSD, NO WIFI

  1. LattePanda Sigma is a compact x86 Windows SBC server.
  2. 16GB Dual-Channel
  3. Intel Core i5-1340P CPU

₨ 100.10

Out of stock

Out of stock

Compare
Add to wishlist
18 People watching this product now!

DATASHEET

DOWNLOAD

CPU Spec

12-Core, 16-Thread
1.9 ~ 4.60GHz (Performance-core), 3.4 GHz (Efficient-core)
12M Cache
28W TDP
Graphics

Intel® Iris® Xe Graphics
Graphics Spec.

400 ~ 1450 MHz
80 Execution Units
Memory

16GB LPDDR5 6400MHz
Dual Channel
Storage

M.2 NVMe SSD (separately installed)
Network

2 x 2500M Ethernet
M.2 Wi-Fi Module (separately installed)
USB Ports

2 x USB2.0 Type-A (480Mbps)
2 x USB3.2 Gen2 Type-A (10Gbps)
2 x Thunderbolt™ 4 Type-C (40Gbps)
Display

HDMI 2.1, up to 4096 x 2304 @ 60Hz
DP 1.4a, up to 7680 x 4320 @ 60Hz
eDP 1.4b, up to 4096 x 2304 @ 120Hz
Expansion Slots

M.2 M Key: PCIe 3.0 x 4
M.2 M Key: PCIe 4.0 x 4
M.2 B Key: SATA III/PCIe 3.0 x 1, USB2.0, USB3.0, SIM
M.2 E Key: PCIe 3.0 x 1, USB2.0, Intel CNVio
Micro SIM Card Slot
Audio

3.5mm Microphone/Headphone Combo Connector
Co-Processor

Microchip® ATmega32U4-MU
GPIO

20 x Digital IO Pins, incluing: 7 x PWM Pins, 12 x Analog Pins, 1 x UART, 1 x I2C, 1 x SPI, 2 x 5V Power Pins, 1 x ICSP, 1 x S0/S3/S4, 1 x USB2.0, 1 x SATA III Data, 1 x SATA Power, 1 x Front Panel, 1 x Front Audio Panel, 1 x COM (RS232/RS485), 1 x DC Input
Security

Built-in TPM (2.0)
Operating System

Windows 10 & 11
Ubuntu 22.04
Dimension

146mm*102mm*24mm
Power Supply

USB Type C: 20V 4.5A
DC Jack: 19V 4.7A
BIOS Function

Auto Power-on
Watchdog Timer
Applications

Homelab
Edge Server
AI Inference
Recommendation

The latest and most powerful version.
Shipping Weight 0.3 kg
Shipping Dimensions 15 × 12 × 6 cm

LattePanda Sigma is a compact x86 Windows SBC server with an Intel Core i5-1340P CPU, Intel Iris Xe Graphics, and 16GB Dual-Channel LPDDR5-6400 RAM. It…

Features :

  1. Ultimate Performance: The Intel Core i5-1340P processor has 12 cores and 16 threads with a maximum turbo frequency of 4.60 GHz (performance-core) and 3.4 GHz (efficient core), making it a powerful and efficient processor for multitasking and demanding applications.
  2. Lightning-fast Memory: The dual-channel LPDDR5-6400 RAM with a capacity of 16GB ensures smooth and fast performance.
  3. High-level Graphics Capability: as it features the Intel Iris Xe Graphics, LattePanda Sigma supports multiple display outputs with high resolutions and refresh rates.
  4. Quad 4K displays: Experience unparalleled visual clarity with support for quad 4K displays, bringing your content to life like never before.
  5. User-friendly Interface Layout: plug and play with ease
  6. Rich Interfaces: Unlock limitless possibilities with rich interfaces, offering seamless connectivity and enhanced user experience.
  7. Diverse OS Support: Support Windows 10, Windows 11, and Ubuntu operating systems.

Package Includes:

1 x LattePanda Sigma

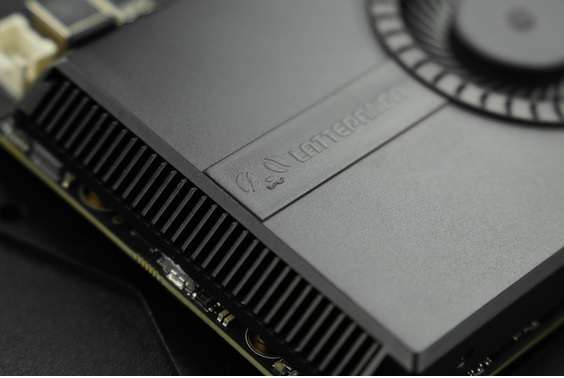

1 x Active Cooling Fan (Assembled)

1 x Metal Protective Bottom Plate

2 x Thermal Pads for M.2 SSD

1 x Power Adapter with DC cable

3 x AC Cable(EU & US & UK) for power adapter

1 x RTC Battery (Assembled）

1 x User Manual

1 x M.2 NVMe SSD 500GB

1 x M.2 Intel WiFi 6E Module

2 x WiFi/BT Antenna
