DATASHEET

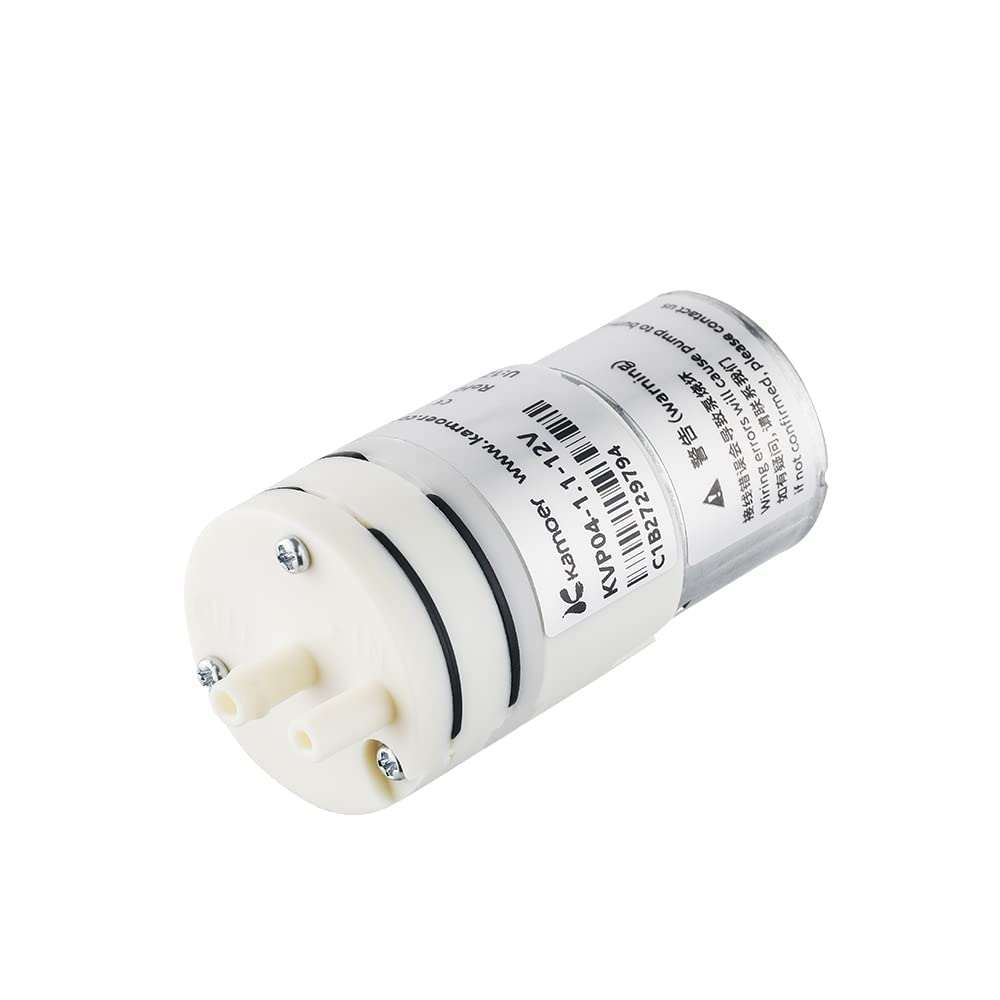

Kamoer 12V 0.32A 1100ml/min Mini Vacuum Pump
- Mini Vacuum Pump
- High-Quality Brushless DC Motor
- Longer Life
- High Performance to Price Ratio
₨ 100.10
Out of stock
Out of stock
20
People watching this product now!
| Model |
KVP04-1.1-12 |
|---|---|
| Operating Voltage (VDC): |
12 |
| Operating Current (A): |
0.32 |
| Operating Temperature (°C) |
0 to 50 |
| Flow Rate (ml/min) |
1100 |
| Noise Level (dB) |
60 |

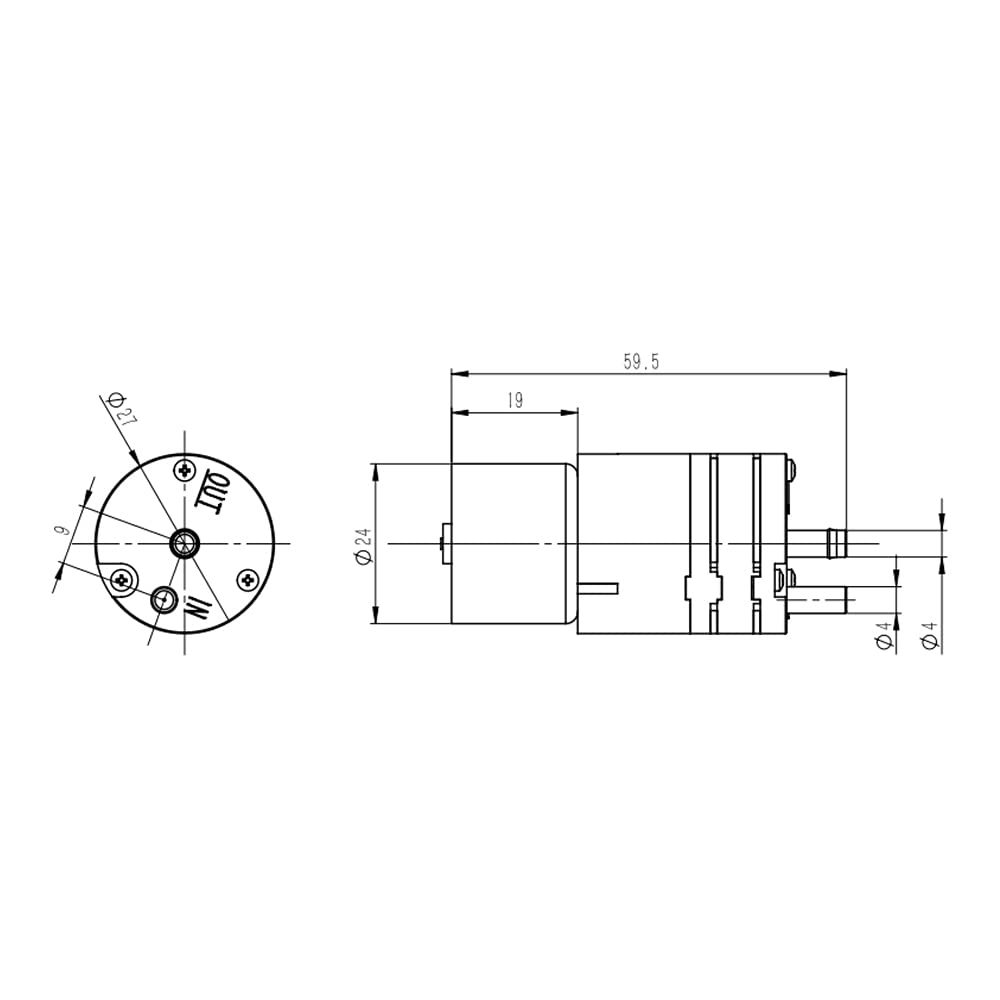

| Length (mm): |
60 |
| Width (mm): |
27 |
| Height (mm): |
27 |
| Weight (g): |
40 |
| Shipping Weight | 0.043 kg |
| Shipping Dimensions | 6 × 3 × 3 cm |

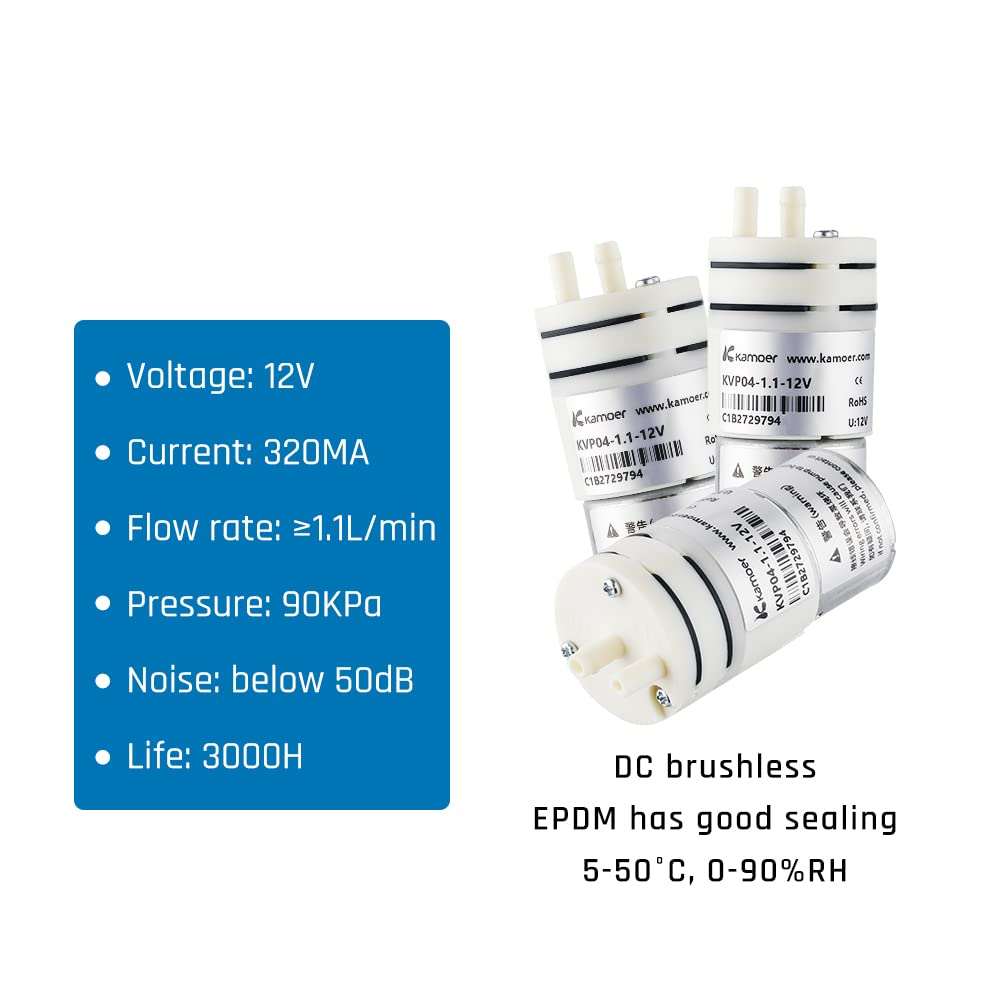

When pumping liquids and no direct contact with the liquid is required, the all-new range of mini diaphragm pumps from kamoer offers a simple solution. Unlike most pumps, diaphragm pumps are designed based on positive displacement pumps, which is powered by the rotation of the motor. The eccentric vane drives the rubber inside to reciprocate, forming absorbing and discharging force to pump air. This pump requires a 12 V DC supply and can produce a flow rate up to 1100ml per minute. If speed control is required we suggest using a simple PWM signal.
Application:
- PM 2.5 testing
- 3D printers
- Medical equipment
- Health care and beauty equipment
- Automation equipment
Features:
- Longe life brushless DC motor
- Low noise
- Small size and powerful
- High-Quality EPDM diaphragm material

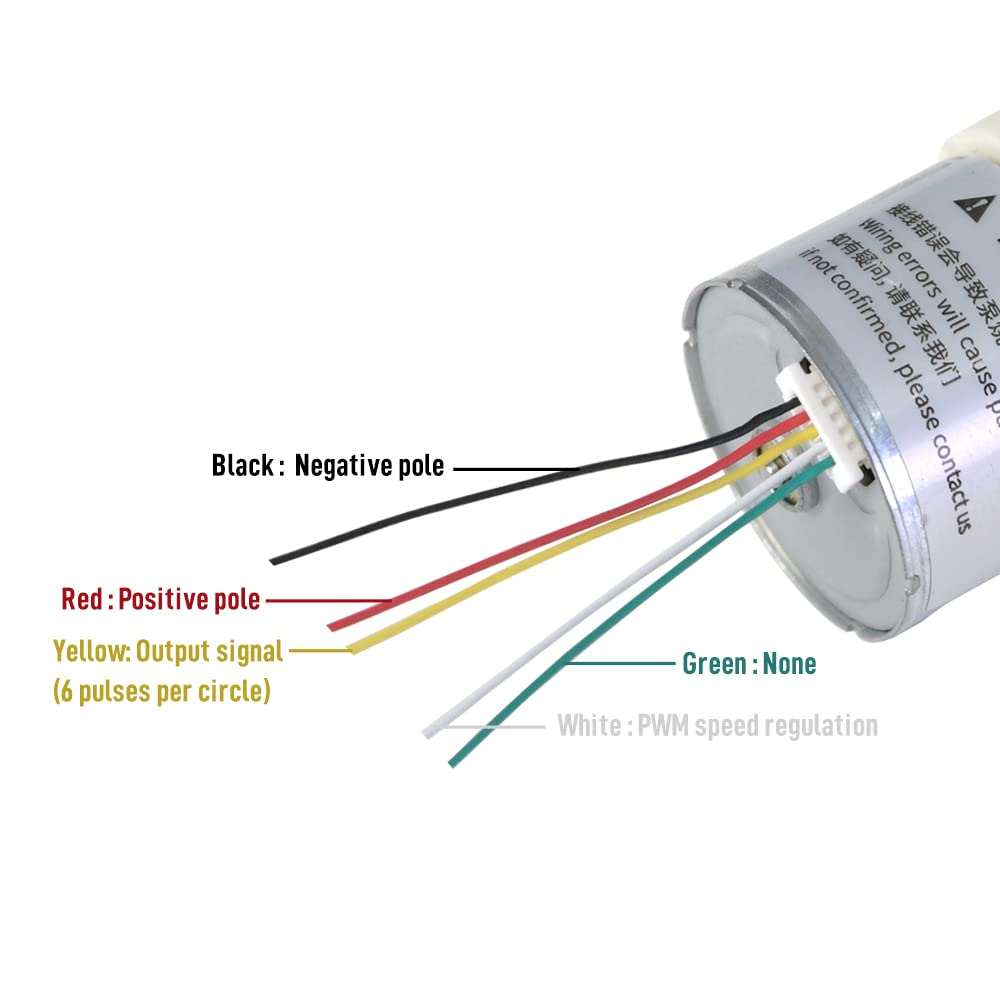

- PWM adjustable speed, a wide range of flow control
Package Includes:
1 x Kamoer 12V 0.32A 1100ml/min Mini Vacuum Pump
