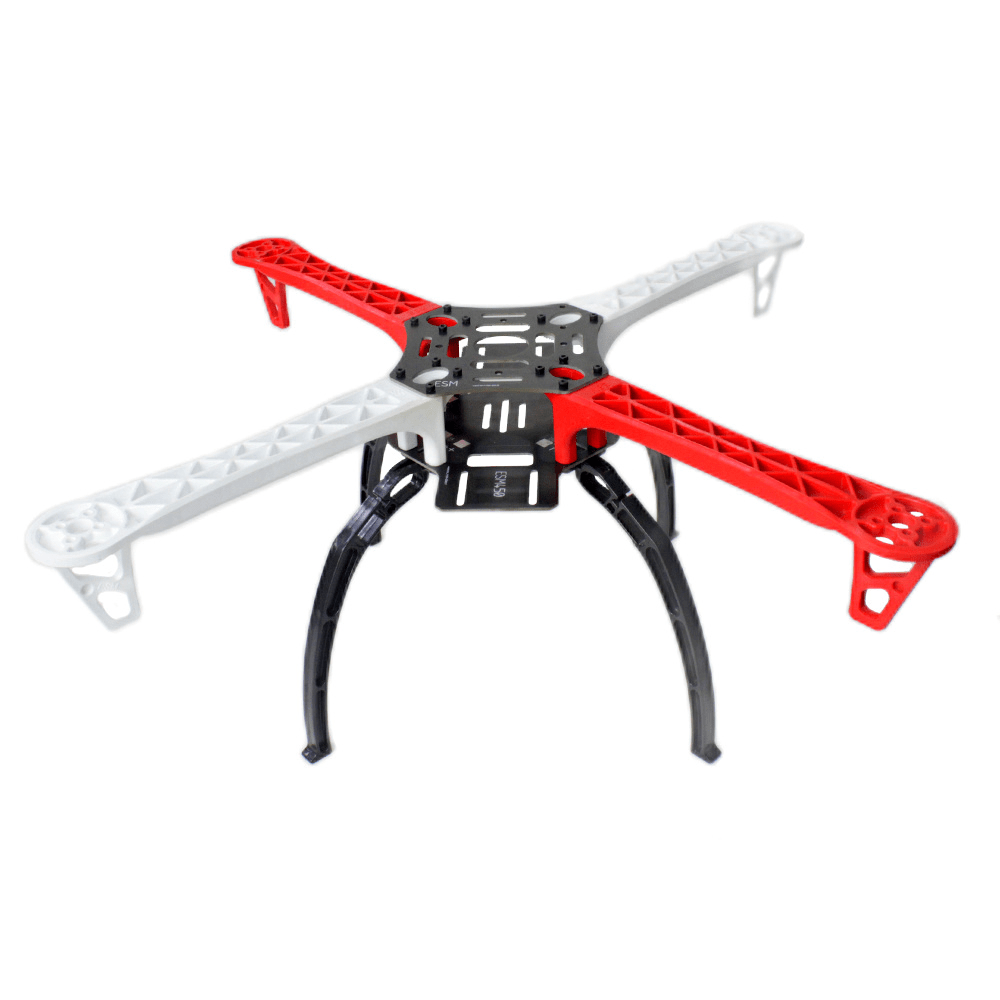

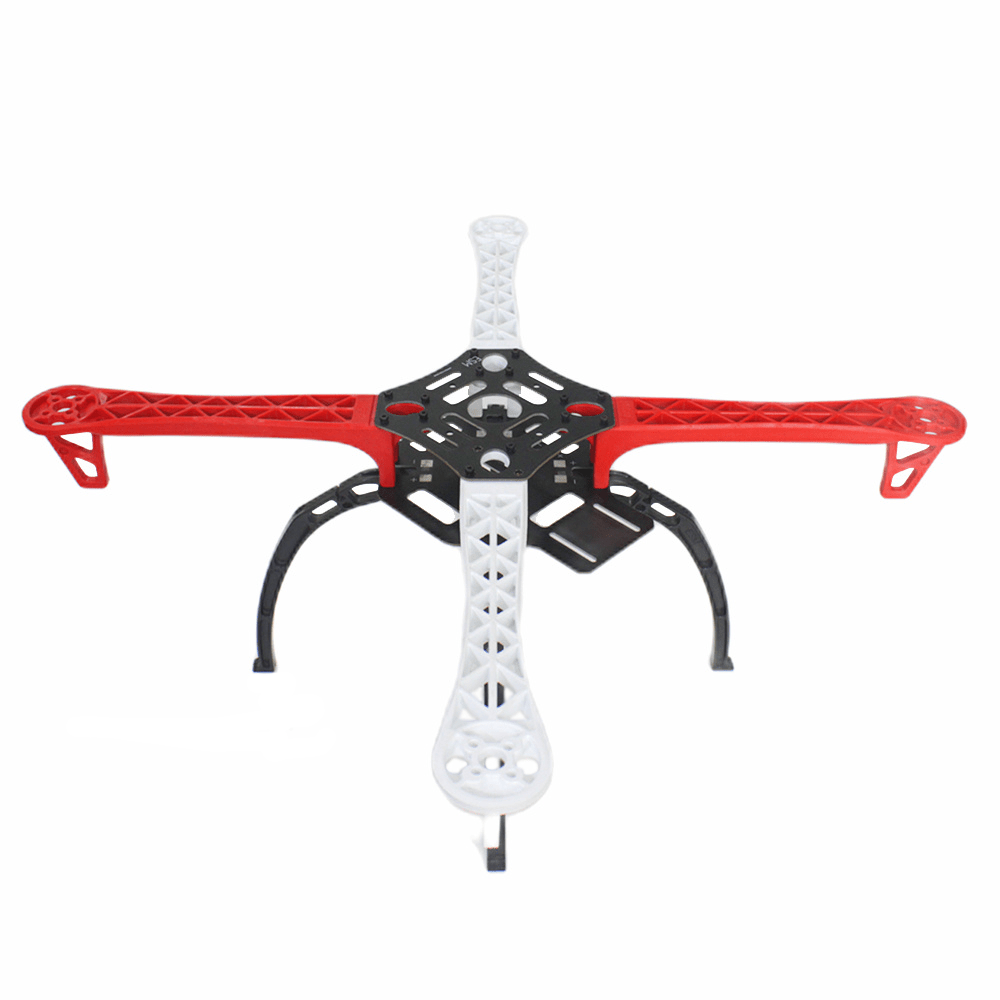

F450 / Q450 Quadcopter Frame(PCB Version with Integrated PCB) + Plastic Landing Gear Combo Kit – Made in INDIA

This F450/Q450 Quadcopter Frame is made from 35% of Glass Fiber which makes it tough and durable. They have arms of ultra-durable Polyamide-Nylon which are the stronger molded arms having a very good thickness so no more arm breakage at the motor mounts on a hard landing. The arms have support ridges on them, which improves stability and provides faster forward flight.

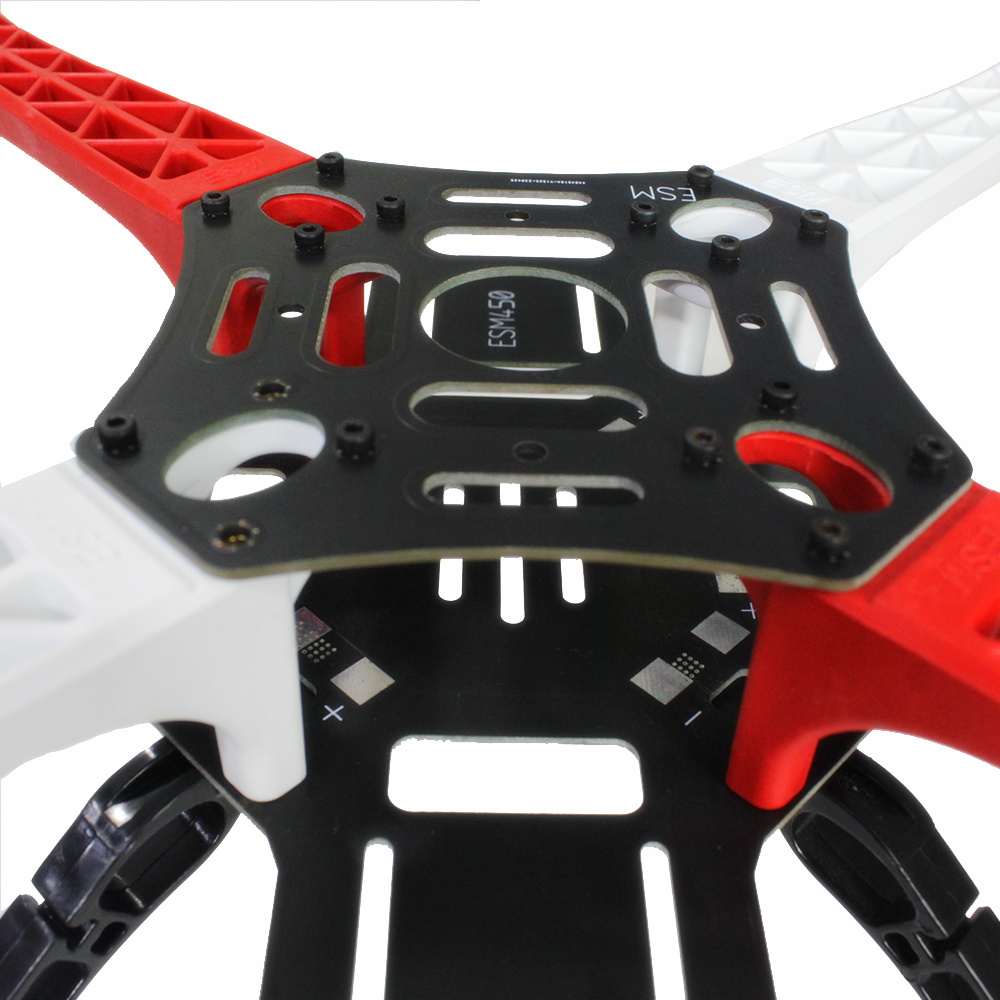

They are strong, light, and have a sensible configuration including a PCB(Printed Circuit Board) with which you can directly solder your ESC‘s to the Quadcopter. So, making the Quadcopter build fast and easy. So, it avoids the use of extra PDB and makes the mounting clean and neat.

Introducing our Made in India Drone Frame, meticulously crafted to ensure assured quality and exceptional compatibility surpassing other options in the market.

We at ROBU dedicatedly redesigned and fabricated these Drone Frame Parts using stronger materials with around 35% of glass fiber, addressing the longstanding issues related to durability and compatibility that were raised by our valued customers over time. We take immense pride in presenting you with a product that not only meets the utmost standards of performance and reliability but also comes at an incredibly affordable price. Experience the difference with our upgraded Drone Frame Parts and elevate your drone-building journey like never before.

Check out the manufacturing process Know More

Note:

1. The dimensions and weight may have  ±5% error.
2. Landing gears are not included in the kit.
3. Refer to the attachments for schematics for Dimensional Details

Features :

1. Made of advanced engineering material, super strong & smooth
2. Easy to assemble and disassemble.
3. The frame is tough and durable.
4. The main glass fiber frame has good strength.

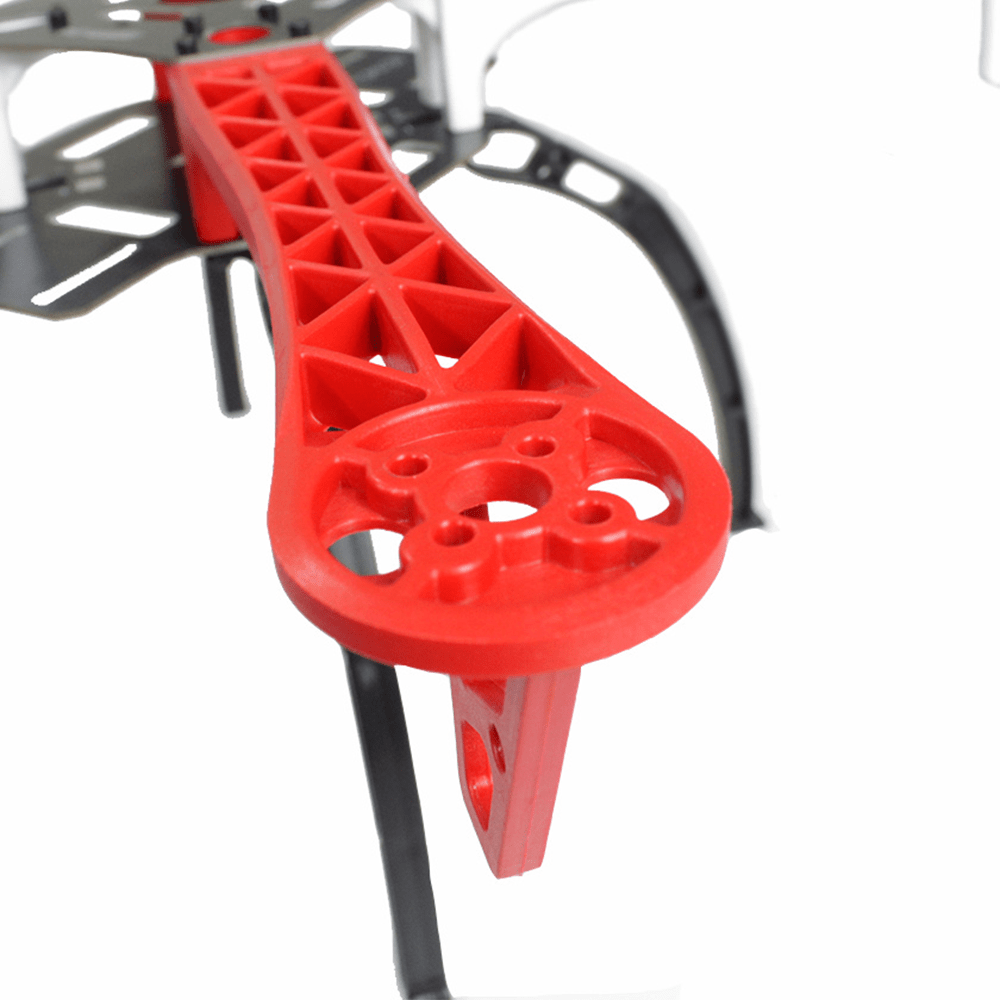

5. The arm equips support ridges for better and faster forward flight.
6. Features pre-threaded brass sleeves.
7. Large mounting tabs for camera mounting.
8. In-built power distribution board.
9. Arm mounting holes: 3 mm.

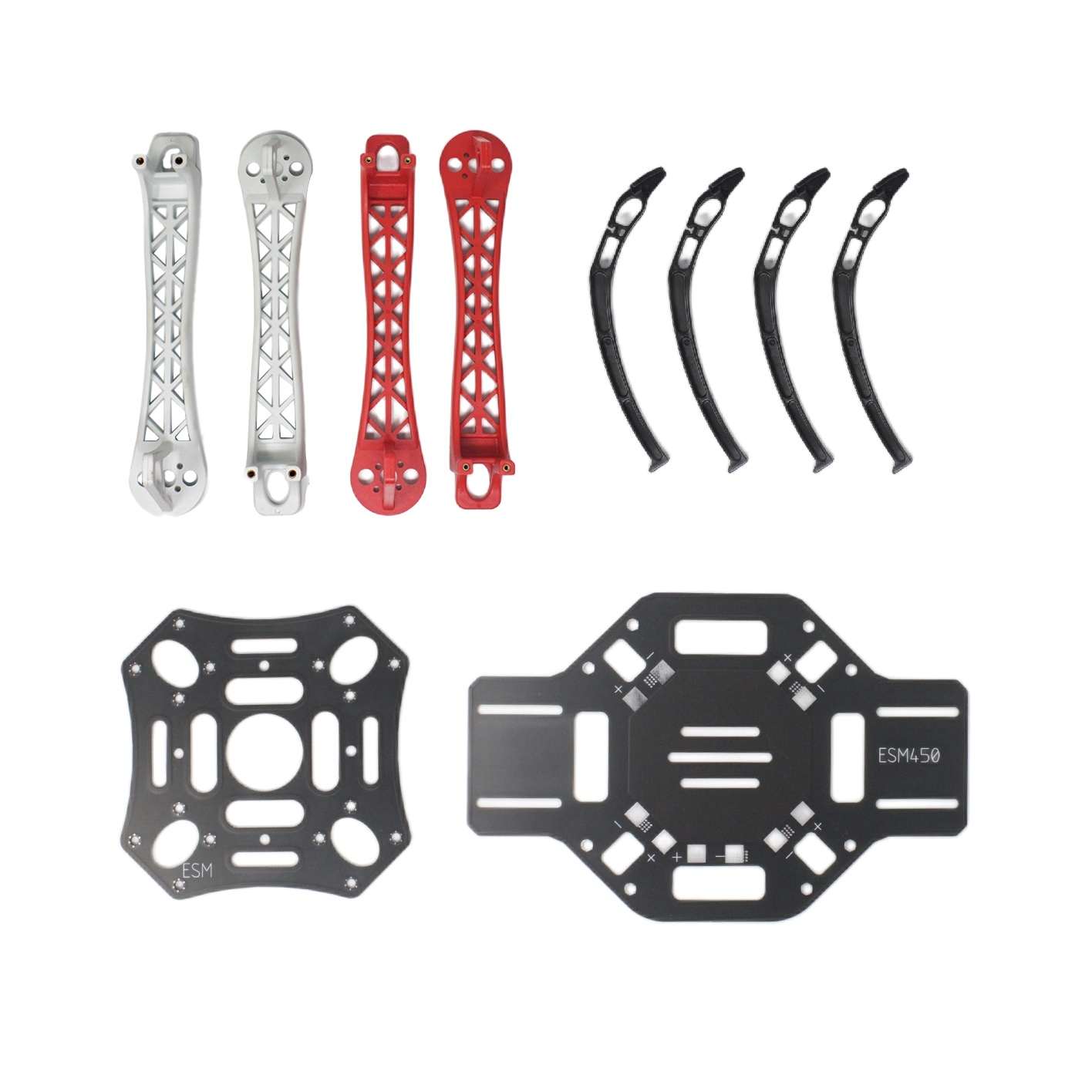

Package Includes:

1 x F450/Q450 Quadcopter Frame PCB Top and Bottom Board.

4 x F450/Q450 arms (2 Red + 2 White).
1 x ABS Plastic Landing Gears
1 x Accessories set.

Recommendation (NOT Included ) :

1. Propeller: “1045″ OR “8045” Orange Propeller (CW & CCW)
2. Battery: 3S Orange LiPo (1800 – 3600mAh)
3. ESC: 15A – 40A.
4. Motor: 800-1100 KV (brushless dc motor)
