| Resistance (Ω) |
10k |
|---|---|
| Interface Type |
I2C |
| Tolerance |
±20% |
| Temperature Co-efficient |
±4ppm/°C |
| Digital Operating Voltage |
2.5V to 5.5V |
| Analog Operating Voltage |
4.5V to 15.5V |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 1 × 1 × 1 cm |

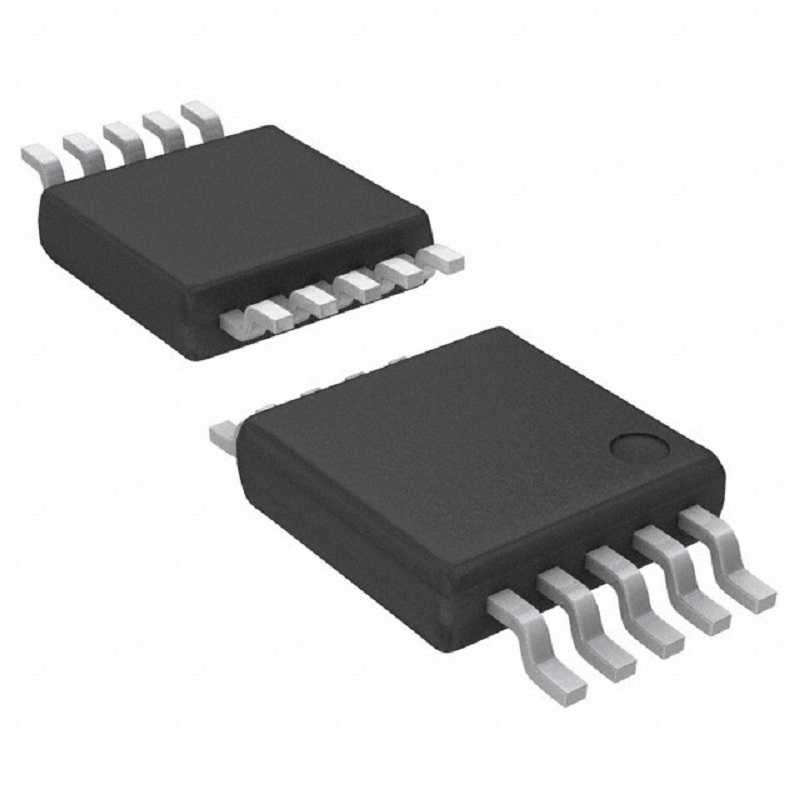

DS3502U Digital Potentiometer 10kΩ
- Control Interface: I2C
- Resistance Value: 10kΩ
- Number of Positions: 128
- Taper Type: Linear
- Memory Type: Non-Volatile
- Number of Pots per Package: 1
- Mounting Type: Surface Mount
- Package-Type: μSOP
- Pin Count: 10
₨ 790.00
Out of stock
Out of stock
10
People watching this product now!
This is a DS3502U Digital Potentiometer 10kΩ 128-Position Linear I2C 10 Pin, μSOP IC. A DS3502 is a 7-bit, nonvolatile (NV) digital potentiometer featuring an output voltage range of up to 15.5V. Programming is accomplished by an I2C-compatible interface, which can operate at speeds of up to 400kHz. External voltages are applied at the RL and RH inputs to define the lowest and highest potentiometer outputs.
Features:
- 128 Wiper Tap Points
- I2C-Compatible Serial Interface
- Address Pins Allow Up to Four DS3502s to Share the Same I²C Bus
- 10-Pin μSOP Package
Package Includes:
1 x DS3502U Digital Potentiometer 10kΩ.
