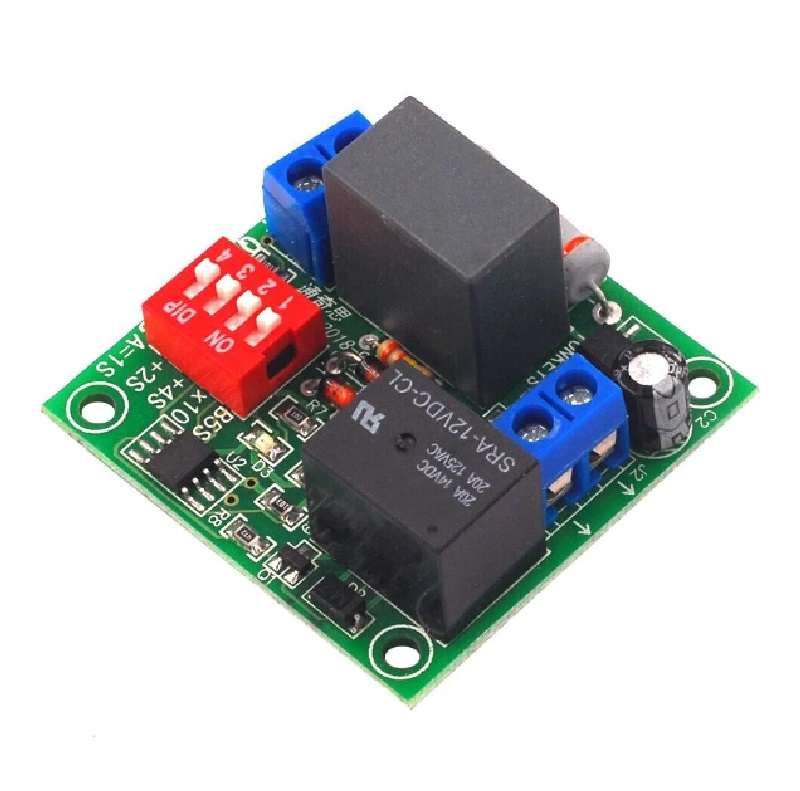

Device Power-on Automatic Boot Module 220V Wide Voltage RD01AC

1. RDO1AC is a 220V (actually can be used for 100V~250V) single-channel automatic touch module. Automatic power-on function of multi-purpose equipment after power-on
2. Basic function: When the mains power is turned on, the module delays x seconds, the relay is connected for y seconds, and then disconnected. The time of x and y can be set to 3. The main control chip adopts an industrial-grade single-chip microcomputer, which has accurate time, strong anti-interference, and a wide range of humidity applications.
3. The power supply adopts RC step-down, direct AC access, eliminating the step-down circuit and solving the problem of troublesome wiring
4. The output is a relay dry contact, that is, no electricity (equivalent to a switch), passive output is suitable for more applications, and the wiring is more flexible and convenient
5. With a power indicator, it flashes during the delay and is always on when it is connected. Turns off when work is done

Note: Actual products may vary in terms of size, shape, and color.

Features:

1. Using high-quality materials, the quality is guaranteed
2. Exquisite appearance
3. Easy installation and simple operation
4. Long service life
5. Wide application

Package Includes:

1 x Device Power-on Automatic Boot Module 220V Wide Voltage RD01AC
