DATASHEET
Daly Lifepo4 8S 24V 80A Battery Management System
- Model:8S 25.6V 80A
- Charge Voltage(V):25.6
- Charge Current(A):40
- Balance Current(mA):30±5
- Balance Detect Voltage(V):3.6
- State of charge calculations.
- Cell over-voltage and under-voltage protection.
- Intelligent battery balancing (passive).
₨ 100.10
Out of stock
Out of stock
20
People watching this product now!
| Balance Current(mA) |
30±5 |
|---|---|
| Balance Detect Voltage(V) |
3.6 |
| Working Current(uA) |
500 |
| Overcharge Detect Voltage(V) |
3.65±0.05 |
| overcharge Release Voltage(V) |
3.55±0.05 |
| Over Discharge Detect(V) |
2.3±0.1 |
| Over Discharge Release(V) |
2.7±0.1 |
| Operating Temperature (°C) |
-20 to 70 |
| Length (mm): |
150 |
| Width (mm): |
65 |
| Height (mm): |
15 |
| Weight (g): |
344 |
| Shipping Weight | 0.37 kg |
| Shipping Dimensions | 25.5 × 17.5 × 2 cm |

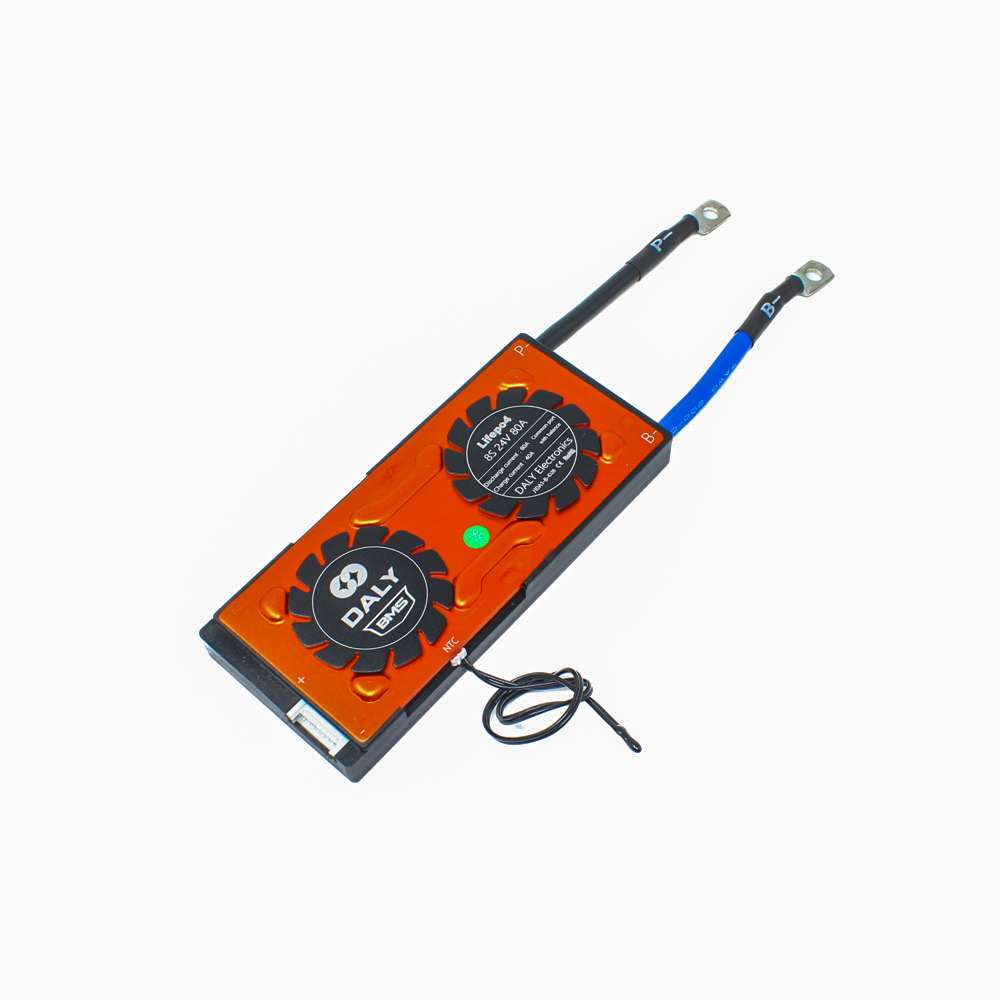

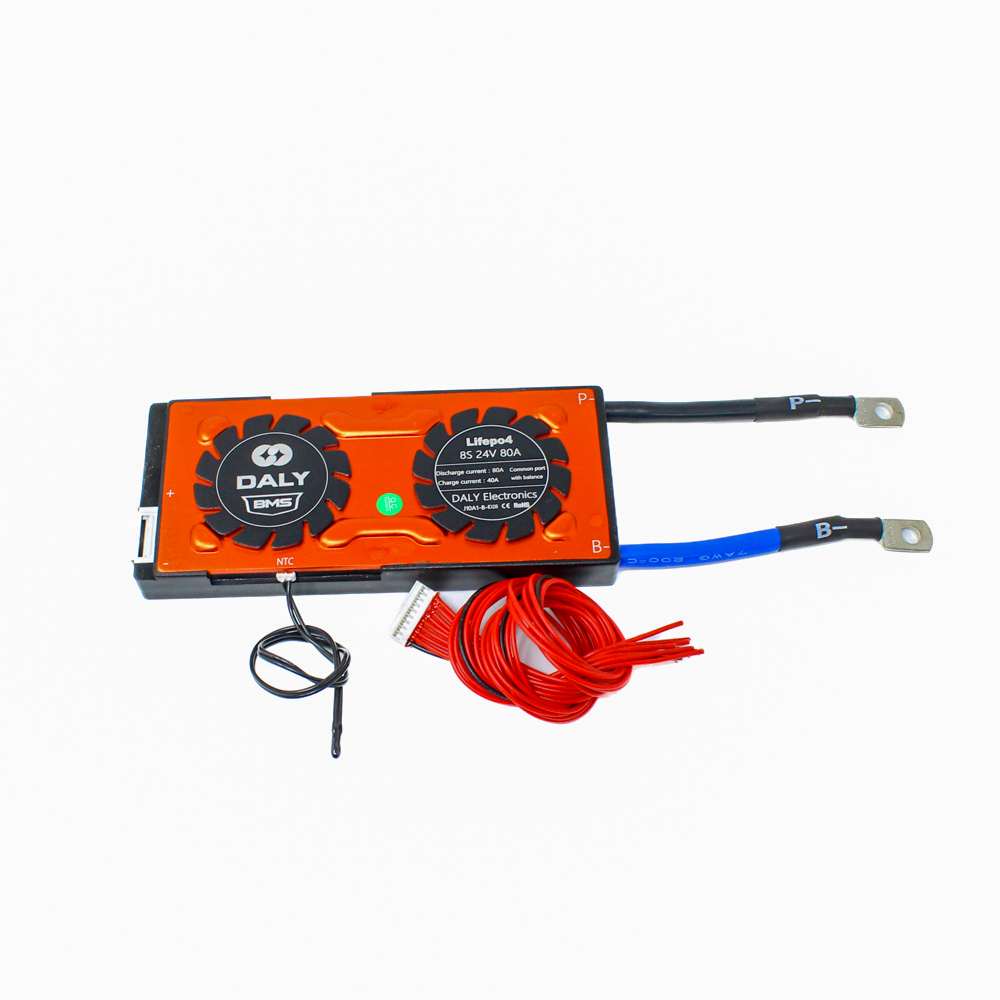

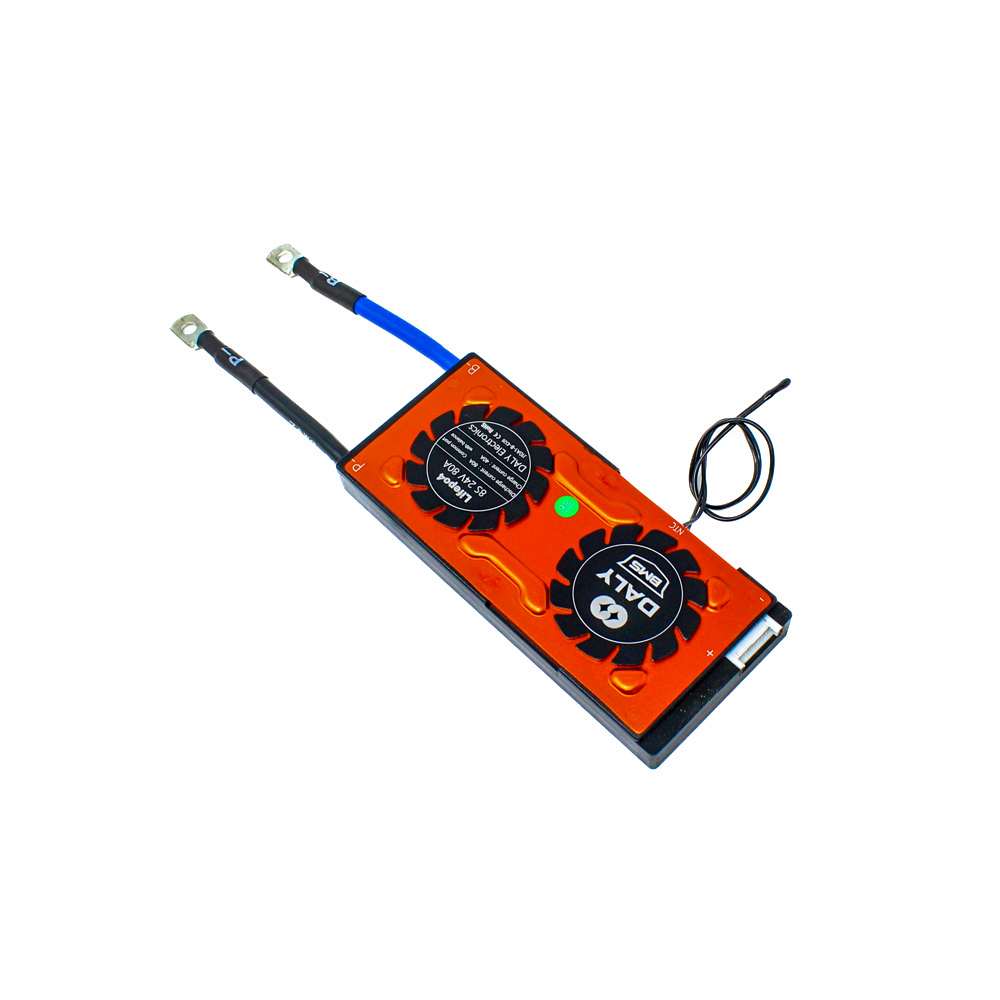

Daly Lifepo4 8S 25.6V 80A Battery Management System Circuit is an 8 Cell in Series 25.6V circuit power tool mostly used for solar lighting. It is designed for lithium Batteries for charging, Protection from overcharge, and Over-discharge. The battery protection board, as the name suggests battery protection board is mainly rechargeable and protects the integrated circuit board.
Lithium batteries (rechargeable type) so need protection, is determined by their own characteristics. As the Daly lithium battery, its material determines itself can not be overcharge, over-discharge, overcurrent, short circuit, and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow A protective plate with a sampling resistor, and a current fuse.
Features:
- State of charge calculations.
- Cell over-voltage and under-voltage protection.
- Intelligent battery balancing (passive).
- Fully sealed waterproof technology, with waterproof, dustproof, shockproof, anti-squeezing, and other protective functions
Package Includes:
1 x Daly Lifepo4 8S 25.6V 80A Battery Management System
