DATASHEET

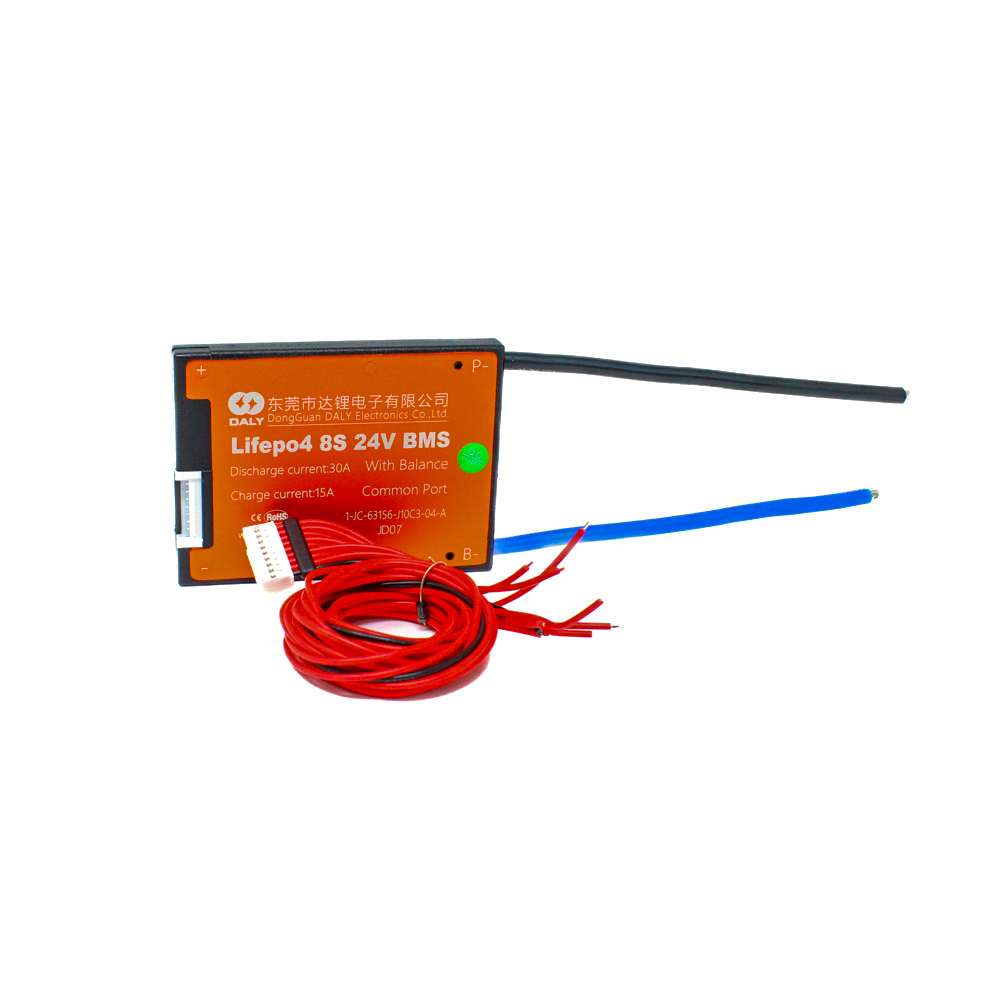

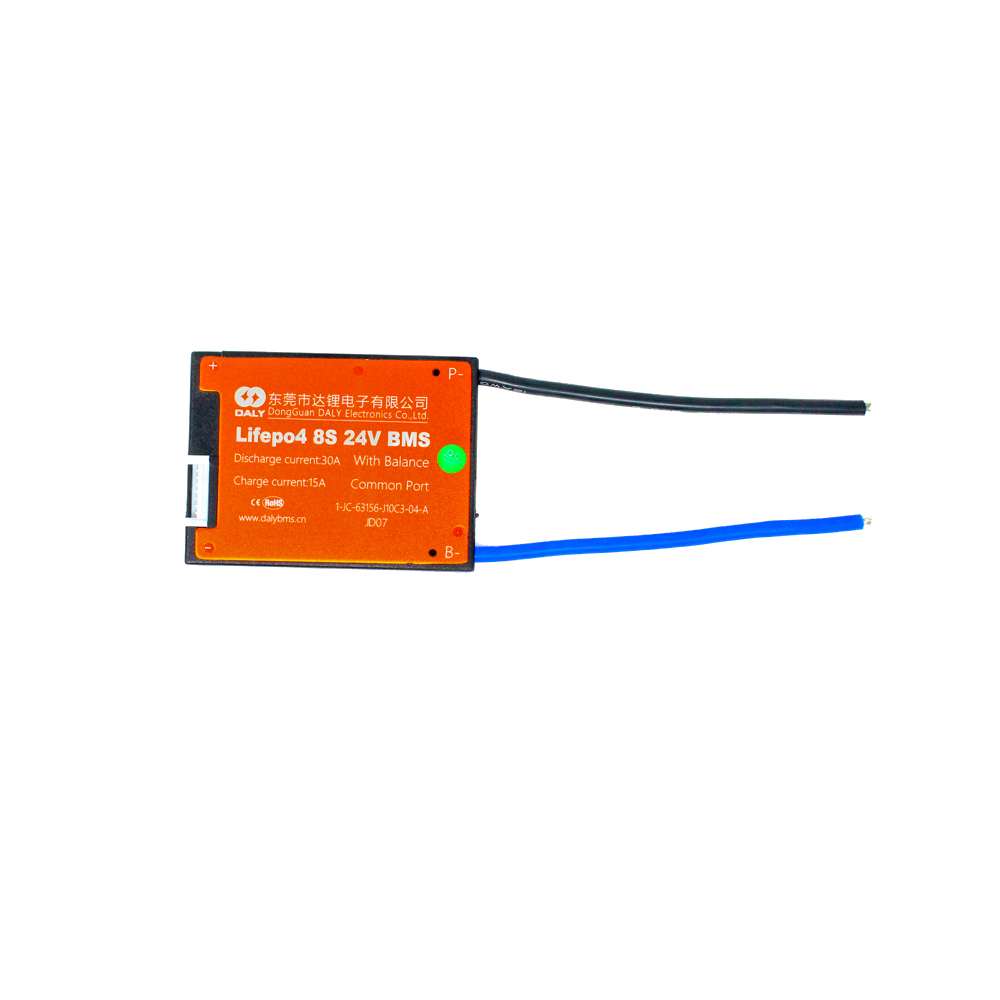

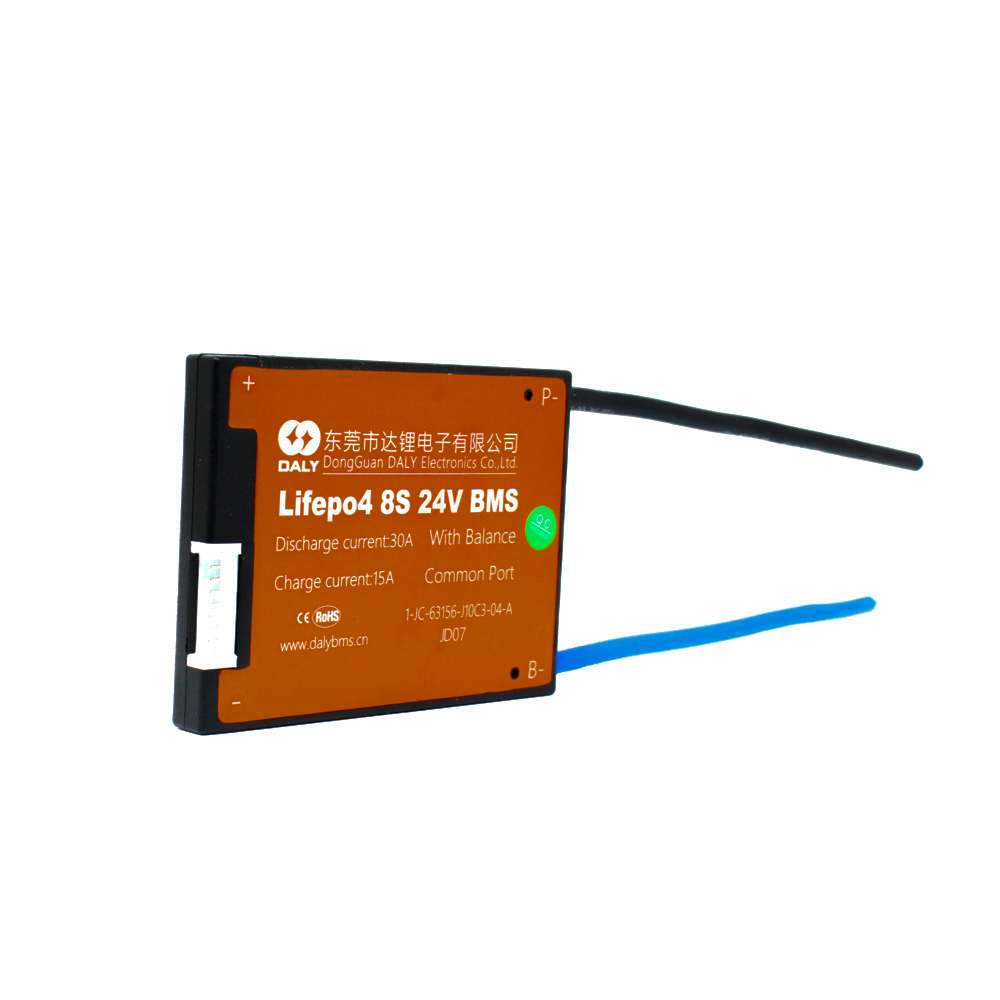

Daly Lifepo4 8S 24V 30A Battery Management System
- Model:8S 24V 30A
- Charge Current(A):30
- Over Discharge Detect(V): 2.2±0.1
- State of charge calculations.
- Cell over-voltage and under-voltage protection.
- Intelligent battery balancing (passive).
₨ 100.10
Out of stock
Out of stock
17
People watching this product now!
| Cable Size (AWG): |
12 |
|---|---|
| Charge Current(A) |
30A |
| Length (mm): |
80 |
| Width (mm): |
60 |
| Height (mm): |
10 |
| Model |
8S 24V 30A |
| Over Discharge Detect(V) |
2.2±0.1 |
| Over Discharge Release(V) |
2.7±0.1 |
| Overcharge Detect Voltage(V) |
3.75±0.05 |
| overcharge Release Voltage(V) |
3.55±0.05 |
| Weight (g): |
86 |
| Operating Temperature (°C) |
-20 to 70 |
| Shipping Weight | 0.165 kg |
| Shipping Dimensions | 16 × 11 × 6 cm |
Daly Lifepo4 8S 24V 30A Battery Management System Circuit is an 8Cell in Series 24V circuit power tool mostly used for solar lighting. It is designed for lithium Batteries for charging and protection from overcharge, and Over-discharge. The battery protection board, as the name suggests battery protection board is mainly rechargeable and protects the integrated circuit board.
Lithium batteries (rechargeable type) need protection, which is determined by their own characteristics. As the Orange lithium battery, its material determines itself can not be overcharged, overcharged, overcurrent, short circuit, or ultra-high temperature charge and discharge, so lithium battery lithium components will always follow A protective plate with a sampling resistor, and a current fuse.
Features:
- State of charge calculations.
- Cell over-voltage and under-voltage protection.
- Intelligent battery balancing (passive).
- Fully sealed waterproof technology, with waterproof, dustproof, shockproof, anti-squeezing, and other protective functions
Package Includes:
1 x Daly Lifepo4 8S 24V 30A Battery Management System
