| Operating Temperature (°C) |
-25 to 70 |
|---|---|
| Rated Current (A) |
0.5 |
| Rated Voltage (V): |
30 DC |
| Contact Resistance (ohm) |
<=0.03 |
| Insulation Resistance (Mohm) |
>=100 |
| Withstand Voltage |
AC 250V(50Hz)/min |
| Lifespan |
1000 |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 9 × 7 × 3 cm |

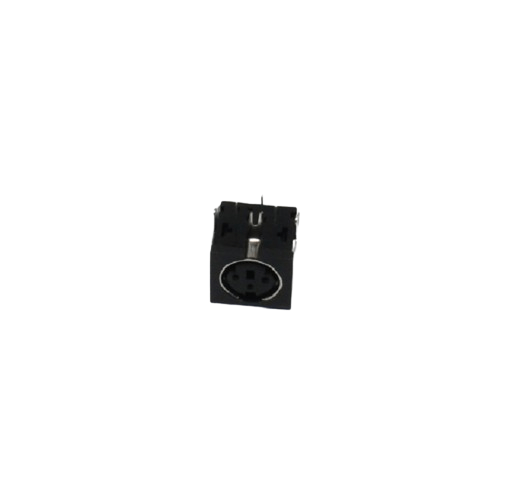

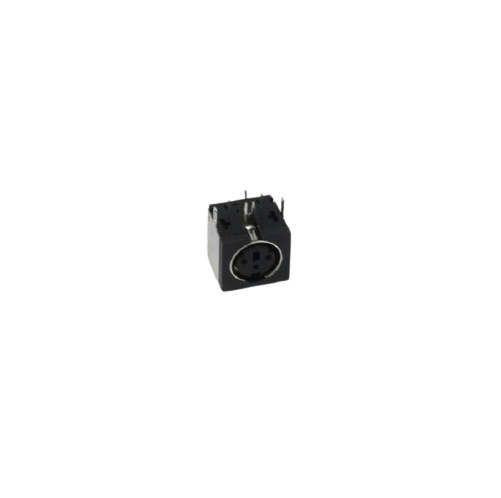

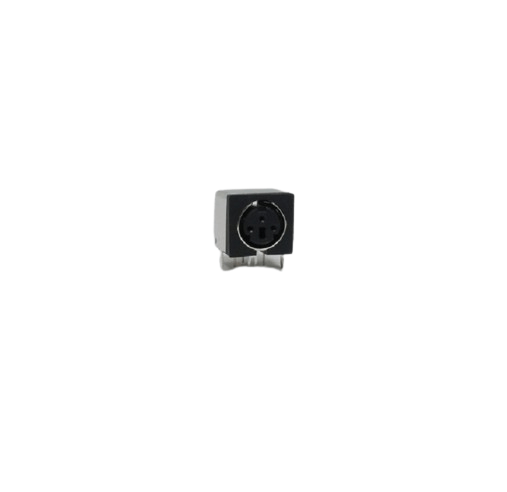

D-S TERMINAL SERIES-DSW-03
- MPN: DSW-03
- Temperature: -25 to 70 degc
- Rated current: 0.5A
- Rated voltage: 30 VDC
- contact resistance: <=0.03ohm
- Insulation resistance: >=100Mohm
- withstand voltage: AC 250V(50Hz)/min
- lifetime: 1000 cycles
₨ 33.00
Out of stock
Out of stock
16
People watching this product now!
The D-S Terminal Series DSW-03, identified by MPN DSW-03, is a robust connector designed for a temperature range of -25 to 70 degrees Celsius. With a rated current of 0.5A and a rated voltage of 30VDC, it ensures reliable electrical connections. The connector features low contact resistance (<=0.03ohm), high insulation resistance (>=100Mohm), and can withstand AC 250V (50Hz)/min. With a lifespan of 1000 cycles, it is suitable for diverse applications requiring durability and consistent performance.
Features:
- D-S Terminal Series: DSW-03
- Specific features depend on the product’s specifications and application.
- Generally designed for electrical terminal connections.
- Features may include durability, ease of installation, and compatibility with various wire sizes.
- Suitable for a range of applications in electronics, automotive, and industrial sectors.
Package Includes:
1 x D-S TERMINAL SERIES-DSW-03
