| Core |
Ferrite |
|---|---|
| Inductance (μH) |
22 |
| Tolerance (%) |
30 |
| Current Rating (A) |
2.85 |
| DC Resistance (DCR) (mΩ) at 20℃ |
73 |
| Length (mm): |
10 |
| Width (mm): |
10 |
| Height (mm): |
4 |
| Weight (g): |
1 (approx) |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 5 × 4 × 2 cm |

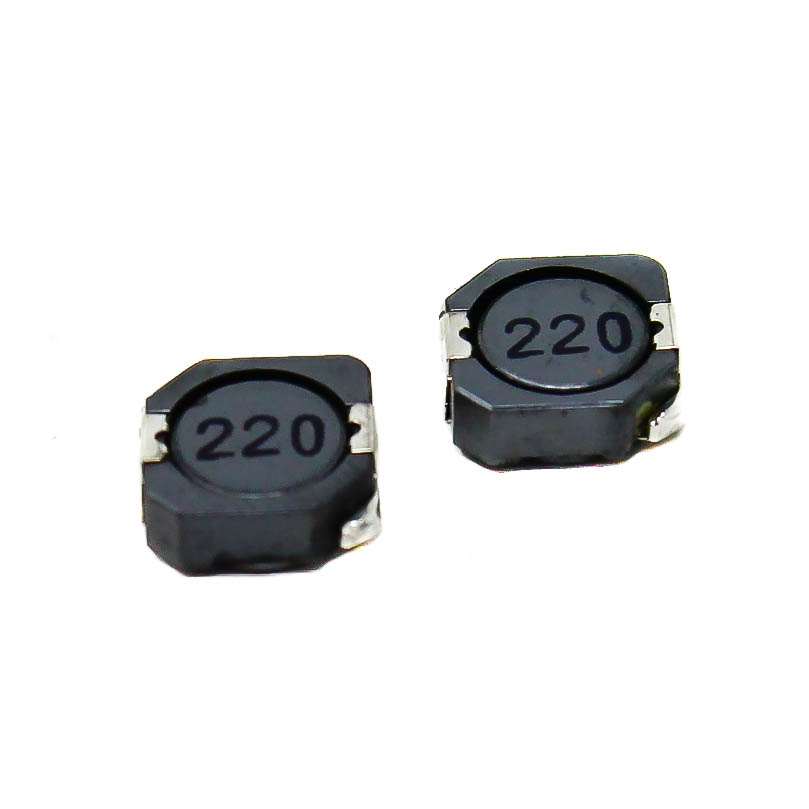

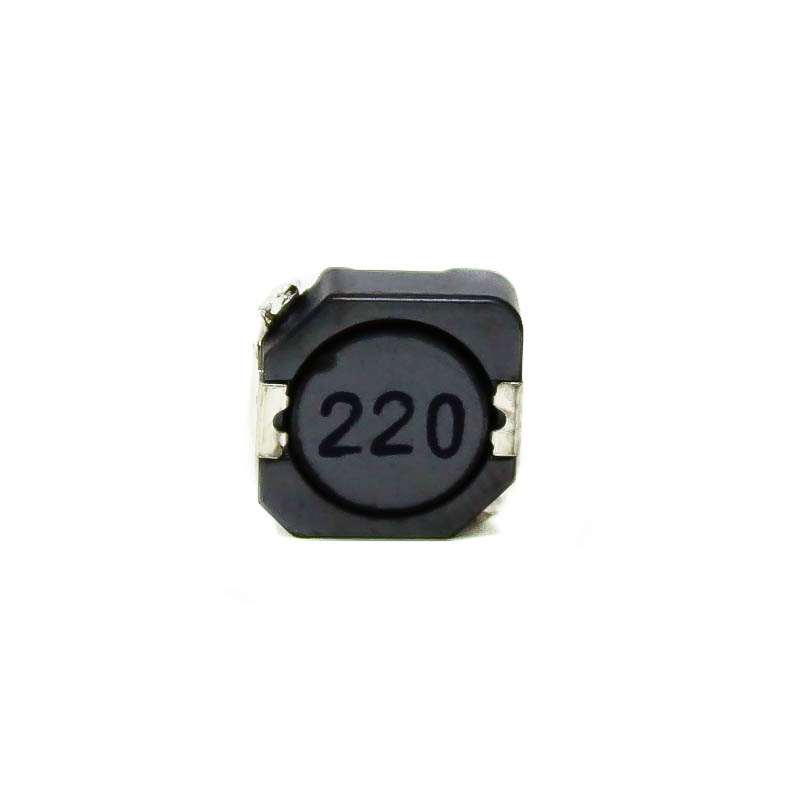

CDRH104R 22uH Power Inductor (Pack of 5)
- Ferrite core drum construction.
- Magnetically shielded.
- Moisture sensitivity level: 1.
- Operating temperature range: -40℃～+100℃ (including coil’s self temperature rise)
- Storage temperature range: -40℃～+100℃
₨ 170.00
Out of stock
Out of stock
10
People watching this product now!
CDRH104R 22μH Power Inductor is a passive electronic device. It has a ferrite drum and copper wire wound on it. Terminals of this inductor, also called pads are designed for surface mounting. Also, the inductor has magnetic shielding.
Moreover, this inductor has the highest moisture sensitivity level of 1.
Applications:
Ideally, this inductor finds its use in notebook PCs, Game Machines, etc as DC-DC converter inductor.
Features:
- Ferrite core drum construction.
- Magnetically shielded.
- Moisture sensitivity level: 1.
- Operating temperature range: -40℃～+100℃ (including coil’s self temperature rise)
- Storage temperature range: -40℃～+100℃
Package Includes:
1 x CDRH104R 22μH Power Inductor (5 pcs.)
