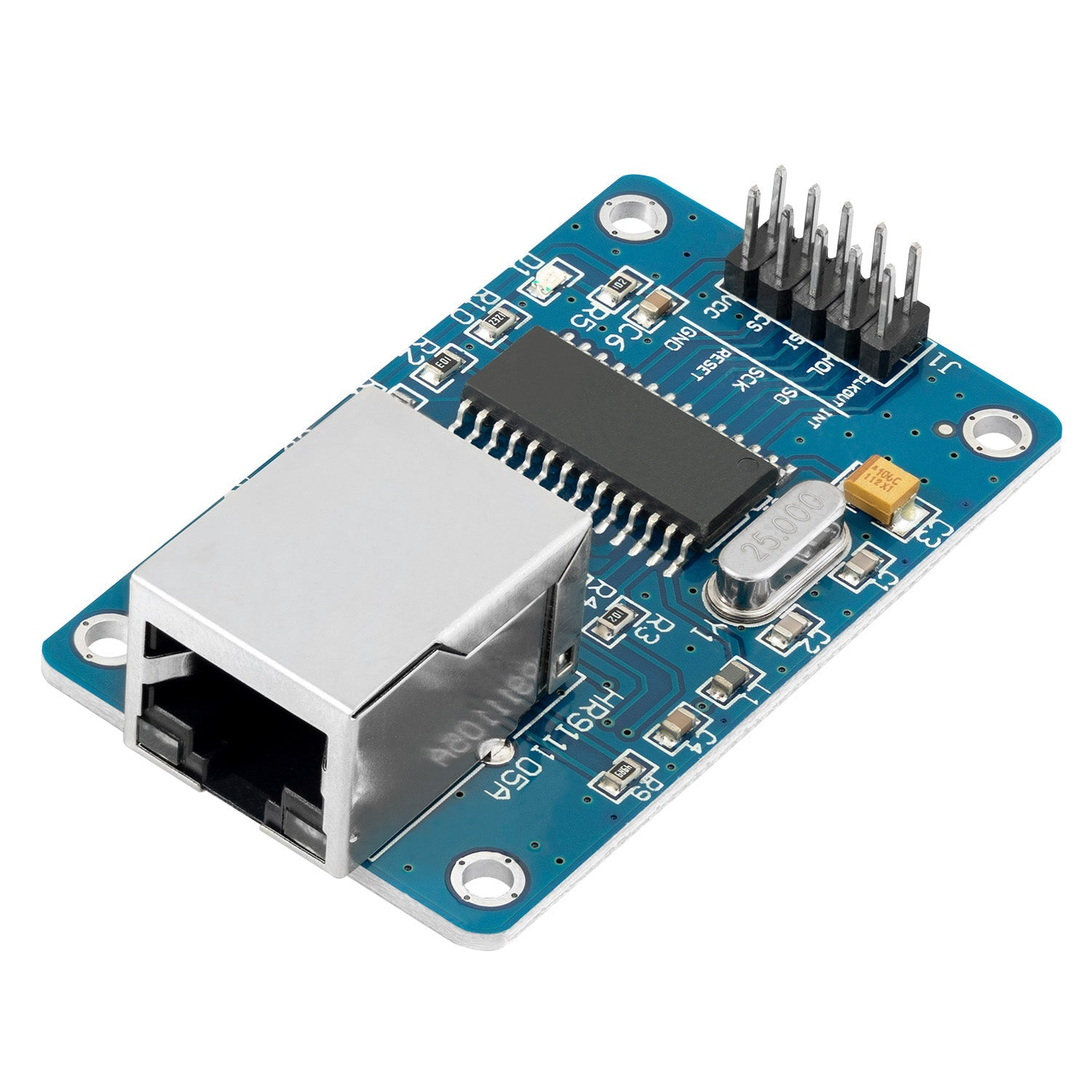

An Arduino Ethernet module allows an Arduino board to connect to a local network or the internet using an Ethernet cable. Here?s an overview of the module:
### Key Features:
– **Ethernet Connectivity**: Enables communication over wired Ethernet networks.
– **Compatibility**: Designed to work with Arduino boards, including Arduino Uno, Mega, and others.

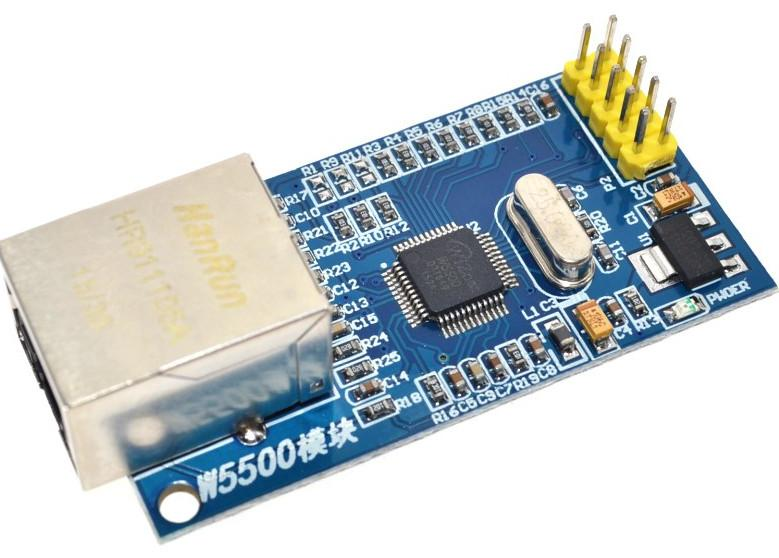

– **Controller**: Typically based on the Wiznet W5100 or W5500 Ethernet controller chip.
– **Interface**: Connects to the Arduino via SPI (Serial Peripheral Interface).
– **Power**: Usually powered via the Arduino?s 5V pin.
### Functionality:
– **Network Communication**: Allows the Arduino to send and receive data packets over TCP/IP protocols.
– **Internet Connectivity**: Enables IoT (Internet of Things) applications where Arduino devices can interact with web servers, cloud services, and other devices on the network.
– **Web Server**: Capable of hosting a web server or serving web pages from the Arduino itself.
– **Client Applications**: Can act as a client to communicate with other servers or devices on the network.
### Applications:
– **Remote Monitoring**: Enables monitoring and control of Arduino projects over the internet.
– **Data Logging**: Sends sensor data to a remote server or cloud platform.
– **Home Automation**: Integrates Arduino projects with home networks for automation and control.
– **Industrial Control**: Used in industrial settings for networked control and monitoring applications.
### Example Use:
1. **Setup**: Connect the Ethernet module to the Arduino board using SPI pins and an Ethernet cable to the network.
2. **Programming**: Use Arduino IDE libraries and examples to configure network settings and implement communication protocols.
3. **Operation**: Implement specific functionalities such as sending sensor data to a web server or receiving commands from a remote client.
The Arduino Ethernet module expands the capabilities of Arduino boards beyond local interactions, enabling connectivity to a wider network environment for diverse IoT and networked applications.
