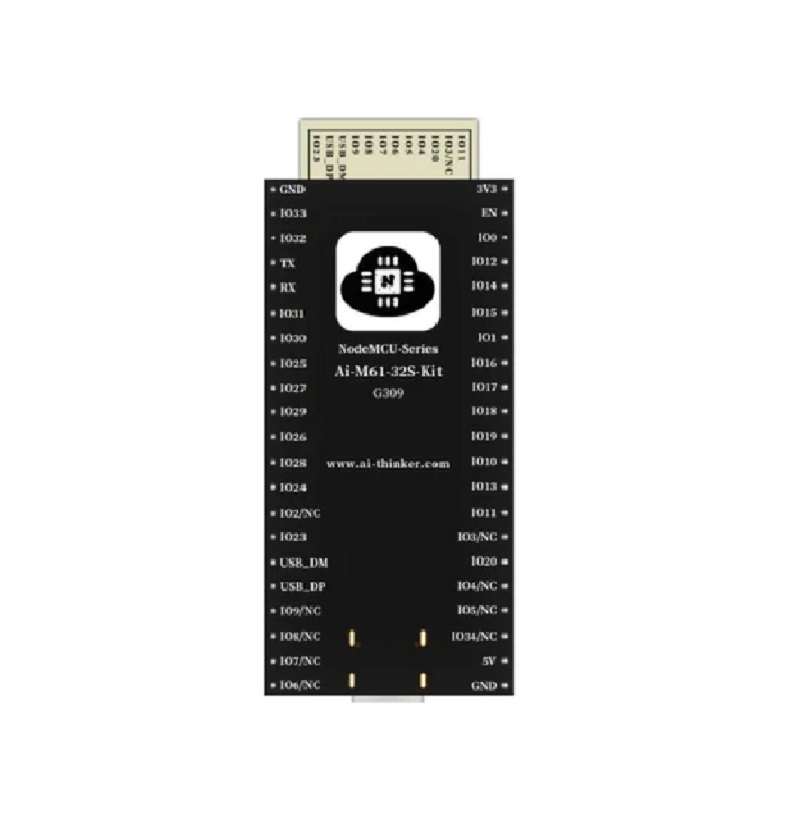

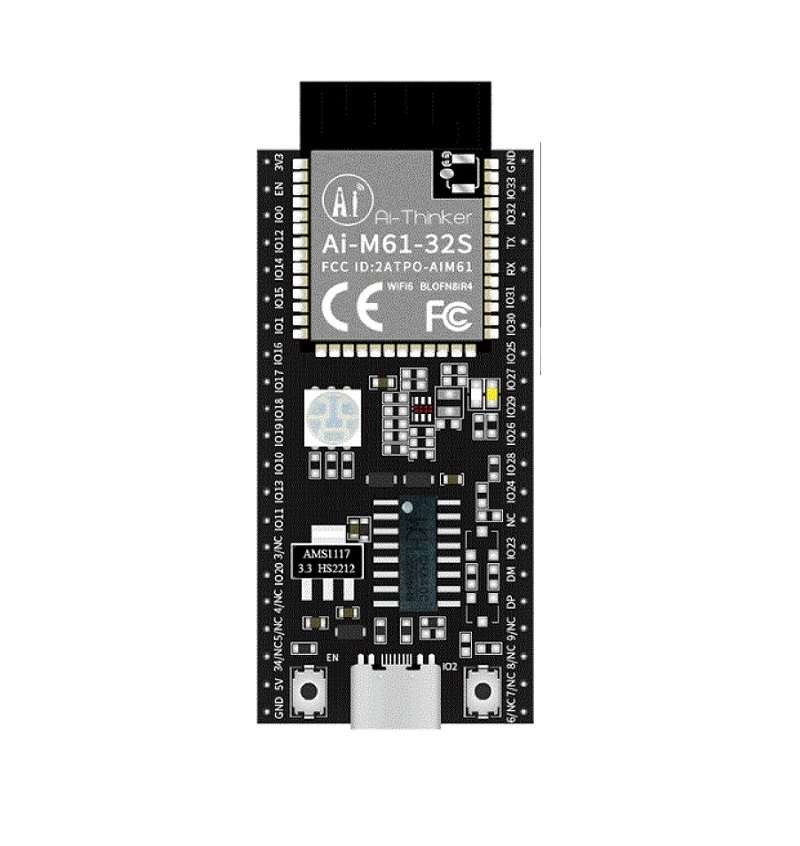

Ai Thinker Ai-M61-32S-Kit

Ai-M61-32S-Kit is a development board designed for Ai-M61-32S modules. Ai-M61-32SisaWi-Fi 6 + BLE5.3 module developed by Shenzhen Ai-Thinker Technology Co., Ltd. The module is equipped with a BL618 chip as the core processor, supports Wi-Fi 802.11b/g/n/axprotocol and BLE protocol, and supports Thread protocol. The BL618 system includes a low-power 32-bit RISC-V CPU with a floating-point unit, DSP unit, cache, and memory, with a maximum dominant frequency of 320M.

The Ai-M61-32S module has rich peripheral interfaces, including DVP, MJPEG, Display, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc. It can be widely used in audio and video multimedia, the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes, and other
fields. The Ai-M61-32S module Sec Eng module supports AES/SHA/PKA/TRNG and other functions, supports image encryption and signature startup, and meets various security application requirements in the Internet of Things field.

Features:

1. Support Wi-Fi/BLE/Thread coexistence
2. Wi-Fi security support WPS/WEP/WPA/WPA2/WPA3
3. Supports 20/40MHz bandwidth, 1T1R, maximum rate 229.4 Mbps
4. Support STA, SoftAP, STA + SoftAP, and sniffer modes
5. 32-bit RISC-V CPU with FPU and DSP, with a maximum dominant frequency of 320M 4MB pSRAM,532KB SRAM,128KB ROM,4Kb eFuse
6. Supports DVP, MJPEG, Display, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc.  Support Camera Sensor DVP interface

Package Includes:

1 x Ai Thinker Ai-M61-32S-Kit
