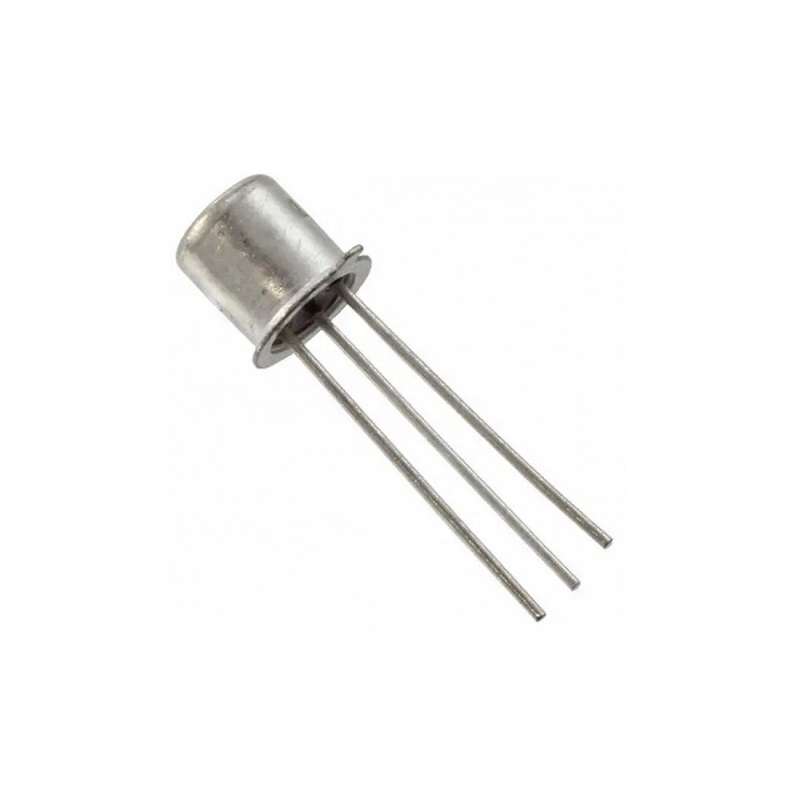

2N2222 NPN Bipolar Transistor -Metal Package (pack of 20)

2N2222 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor’s terminals controls the current through another pair of terminals.

Features:

1. Metal Can Package
2. Advanced process technology
3.  Low error voltage
4.  Fast switching speed
5.  Full-voltage operation
6.  High power and current handling capability

Specifications:

1. Transistor Polarity: NPN
2. Collector-Base Voltage (VCBO): 60 V
3. Collector-Emitter Voltage (VCEO): 30 V
4. Emitter-Base Voltage (VEBO): 5V
5. Continuous Collector Current (IC): 800 mA
6. Input Capacitance (Cib): 30 pF
7. Output Capacitance (Cob): 8 pF
8. DC Current Gain (hFE): 300
9. Operating Temperature Range: -65 – 200°C
10. Power Dissipation (PD): 1.2 W

Package Includes:

1 x 2N2222 NPN Bipolar Transistor -Metal Package (pack of 20)
