Datasheet
24V 8 Channels Relay, Module High and Low, Triggering Optocoupler, Isolation Relay Module, PLC Signal Amplifier,Board
- Product Name:8 Channels Modbus Relay Module
- Working Voltage: DC 24V
- Working Current:1A
- Work Temperature:-25℃~85℃
- Work Humidity:5%~95%RH
₨ 100.10
Out of stock
Out of stock
11
People watching this product now!
| Product Name |
8 Channels Modbus Relay Module |
|---|---|
| Working Voltage |
DC 24V |
| Working Current |
1A |
| Operating Temperature (°C) |
-25℃~85℃ |
| Working Humidity Range |
5%~95%RH |
| Shipping Weight | 0.276 kg |
| Shipping Dimensions | 15 × 10 × 1 cm |

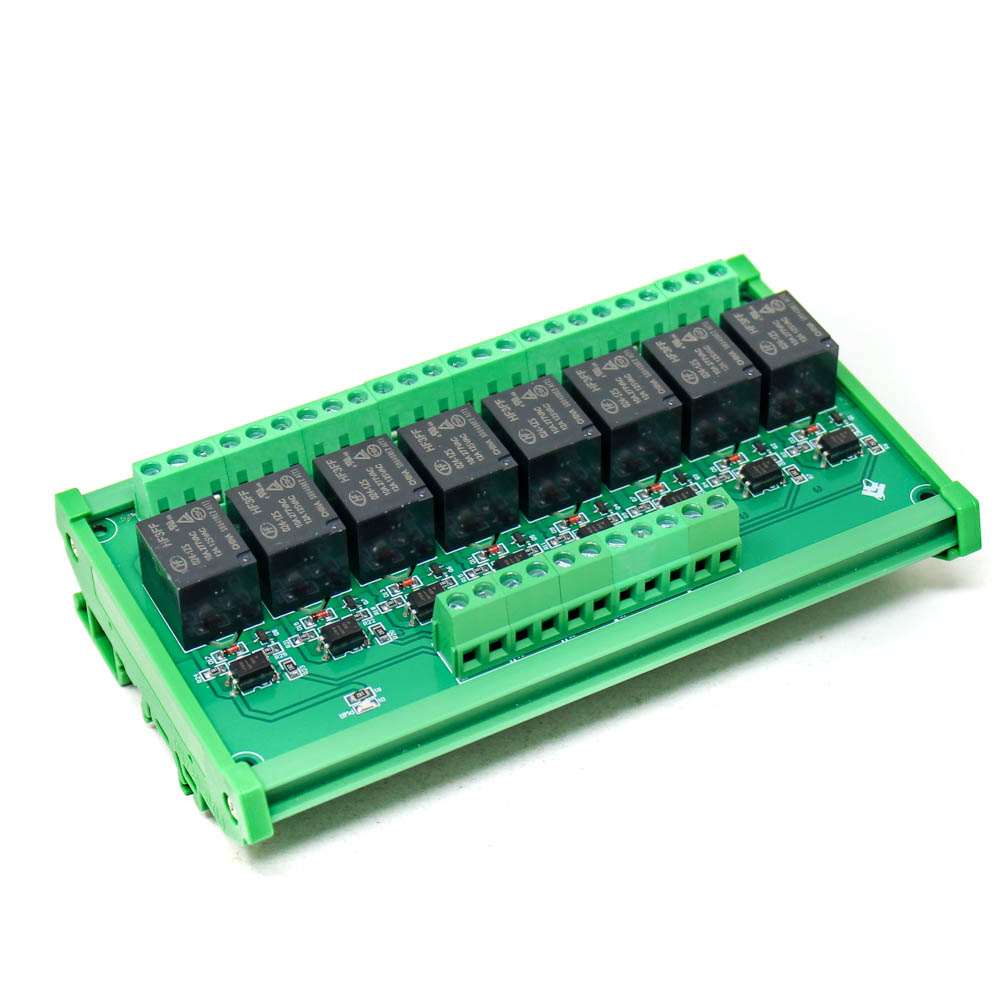

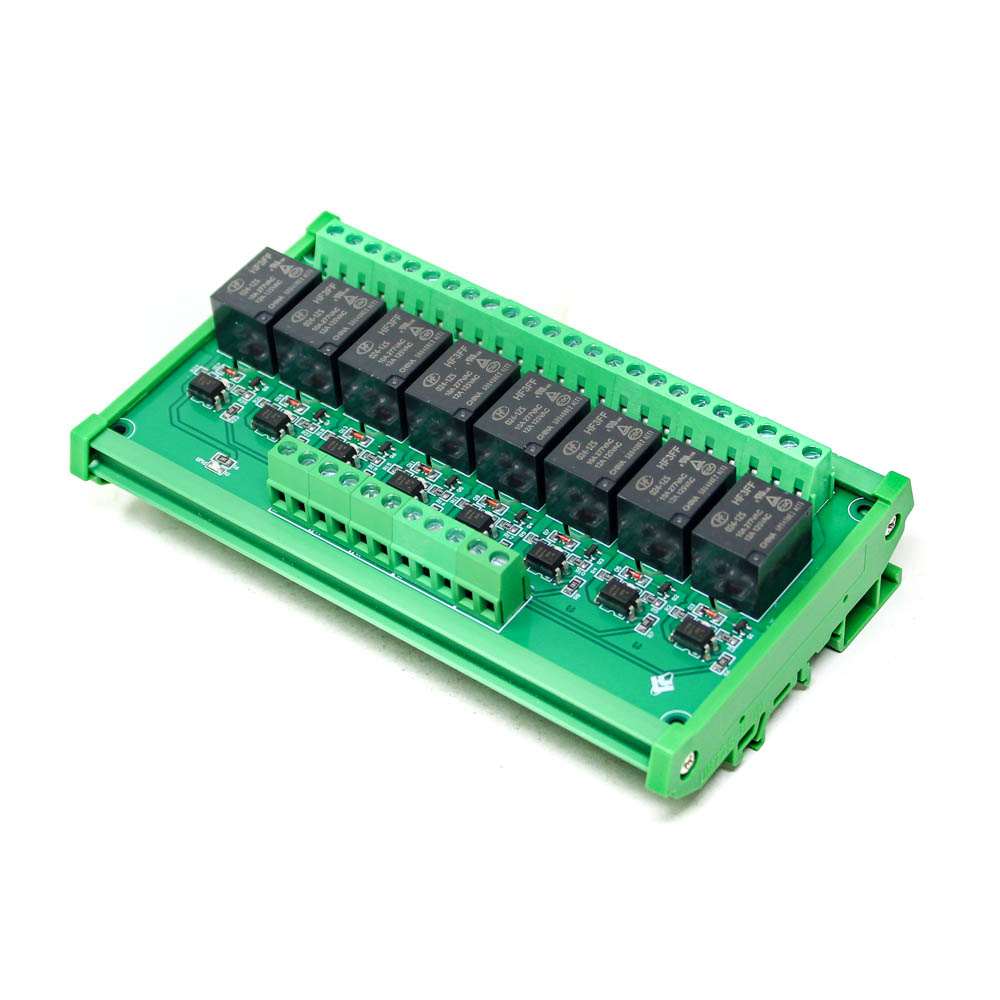

This is a 24V 8 Channels Relay Module High and Low Triggering Optocoupler Isolation Relay Module PLC Signal Amplifier Board. The Module is used to control various appliances and other equipment with a large current. It can be controlled directly by a Micro-controller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic). 24V 8-Channel Relay interface board and each one needs 50-60mA Driver Current. Equipped with high-current relay, AC250V 10A ; DC30V 10A.
Application:
- Supports all MCU control.
- The industrial field.
- PLC control.
- Smart home control.
Features:
- .Modbus serial communication
- Relay switching output
- Convenient AT command control
Package Includes:
1 x 24V 8 Channels Relay Module High and Low Triggering Optocoupler Isolation Relay Module PLC Signal Amplifier Board
