| Item Type: |
PWM Speed Regulator |
|---|---|
| Current Rating (A): |
40 |
| Voltage Rating (V): |
9 to 55 |
| Operating Voltage (VDC): |
9 ~ 55 |
| Max. Operating Current (A) |
40 A |
| Max. Power (W) |
2000 W |
| Speed Regulation |
Potentiometer (linear) |
| Speed range(%) |
0-100% |
| Control Frequency |
25KHZ |
| Length (mm): |
80 |
| Width (mm): |
57 |
| Height (mm): |
25 |
| Weight (g): |
92 |
| Shipping Weight | 0.096 kg |
| Shipping Dimensions | 13 × 13 × 3 cm |

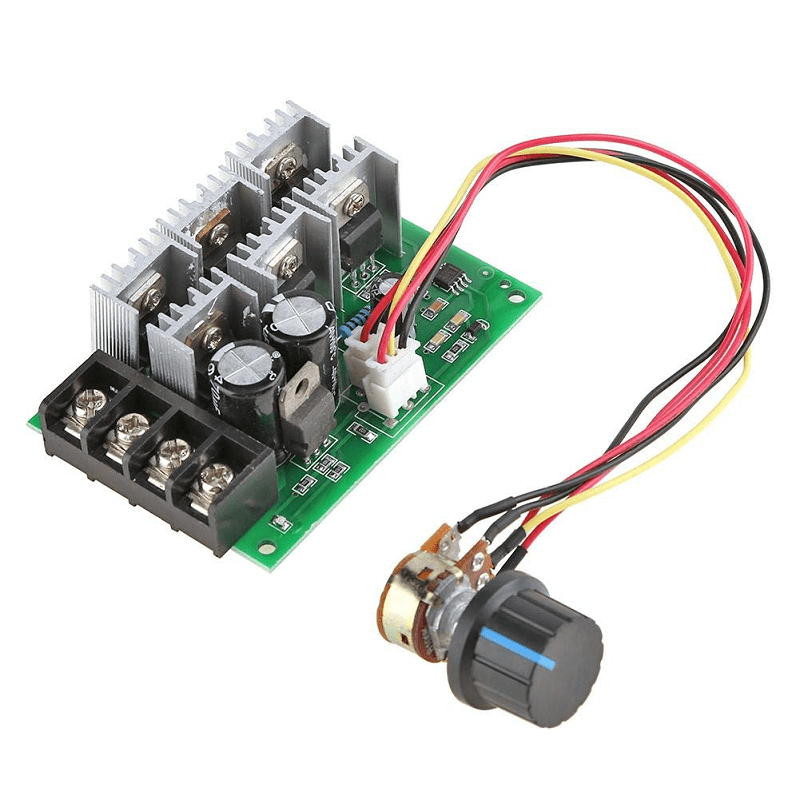

2000W PWM Motor Speed Controller With Potentiometer
- Maximum Power: 2000W
- Operating Voltage: 9-55 VDC
- Operating Current: 0-40 A
- Control Frequency: 25KHZ
₨ 760.00
Out of stock
Out of stock
13
People watching this product now!
This 2000W PWM Motor Speed Controller With Potentiometer is used to control the speed of a DC motor through PWM. This controller is based on high-quality MOSFET’s which has its individual heat sinks. The controller has a high-quality potentiometer to control the speed of the motor. The module can provide maximum power up-to 2000W , which is enough to control all DC motors.
Features:
- Maximum Power: 2000W
- The speed of the DC motor can be controlled by adjusting the pulse width modulation (PWM).
- The knob realizes 0-100% adjustment, supports step-less speed regulation and facilitates positioning speed.
- Operating voltage range: 9 – 55 VDC
Package Includes:
1 x 2000W PWM Motor Speed Controller With Potentiometer
