Datasheet
12V Modbus RTU 4, Channels Relay Module, Input Optocoupler, Isolation RS485 MCU for, Arduino
- Product Name:4 Bit ModbusRTU Relay Module
- Working Voltage:DC 12V
- Working Current:1A
- Work Temperature:-25℃~85℃
- Work Humidity:5%~95%RH
- Size:78*78*20mm
₨ 1,234.00
Out of stock
Out of stock
16
People watching this product now!
| Product Name |
4 Bit ModbusRTU Relay Module |
|---|---|
| Working Voltage |
DC 12V |
| Working Current |
1A |
| Operating Temperature (°C) |
-25℃~85℃ |
| Working Humidity Range |
5%~95%RH |
| Size (mm): |
78*78*20mm |
| Shipping Weight | 0.08 kg |
| Shipping Dimensions | 10 × 9 × 2 cm |

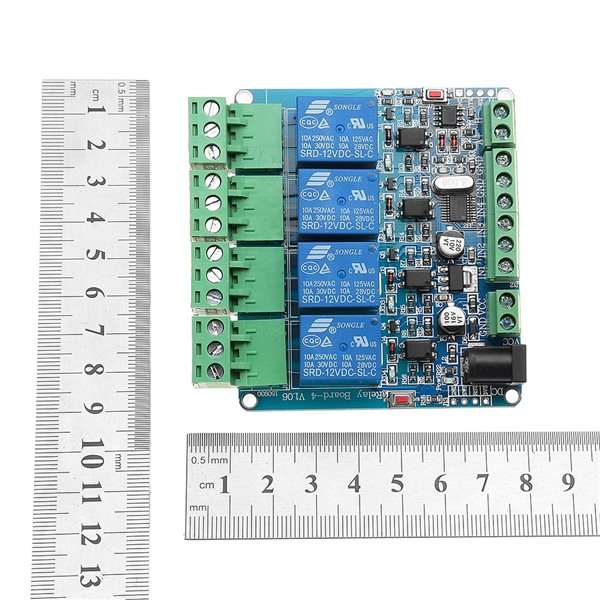

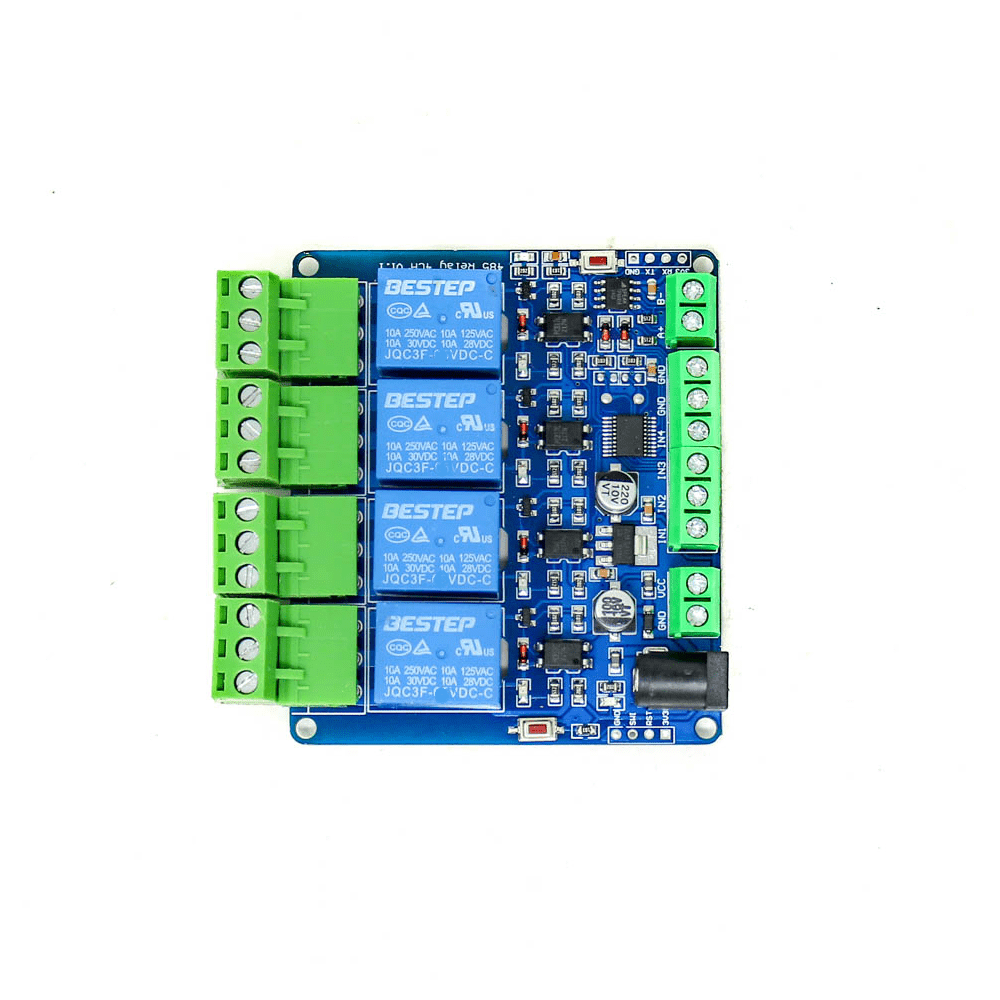

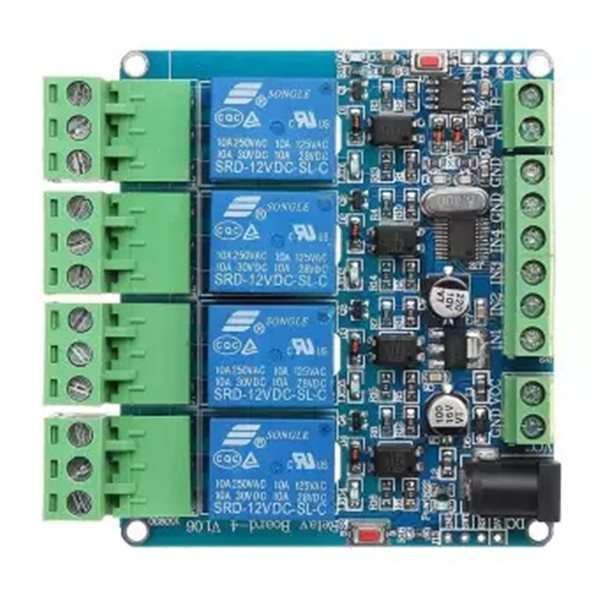

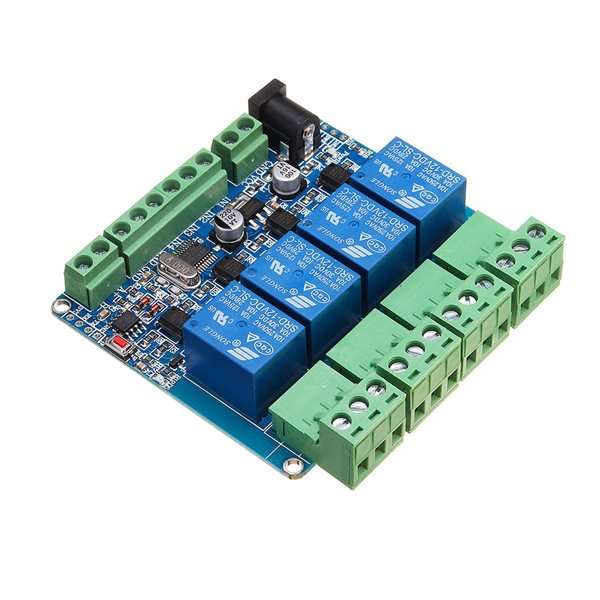

12V Relay Module 4-Channel This is a 12V 4-Channel Relay interface board. Be able to control various appliances and other equipment with a large current. It can be controlled directly by a Micro-controller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic) . 12V 4-Channel Relay interface board and each one needs 50-60mA Driver Current. Equipped with high-current relay, AC250V 10A ; DC30V 10A.
Application:
- Supports all MCU control.
- The industrial field.
- PLC control.
- Smart home control.
Features:
- .Modbus serial communication
- Relay switching output
- Convenient AT command control
Package Includes:
1 x 12V Modbus RTU 4 Channels Relay Module
